- Unit of Measure: Millimeters
- Material: SUS420 Stainless Steel
- Hardness: 50-53 HRC
- Max mold temperature: 150°C (300°F)
- Body diameter has a m6 tolerance to ensure transition fit
- Compatible with DME Indexable Inserts
Indexable Inserts - Numbers 0 Thru 9

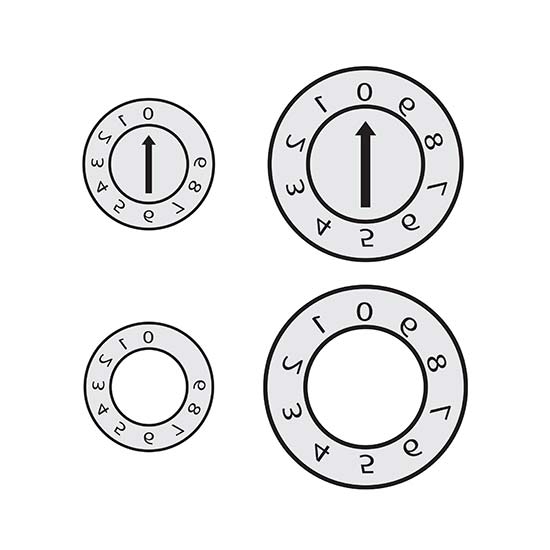

PCS Company offers Indexable Date Inserts - Numbers 0 - 9 & Arrow Assemblies and Bodies. Assemblies incorporate a steel ball stopper mechanism to provide better positioning accuracy while also being more resistant to gas and heat that are generated during molding. Center Insert is installed and removed from parting line side of the mold. Available as assembly or body only. Please note that DTEX4 & DTEX5 have Body Indexing of 12 equal divisions while DTEX8 through DTEX20 have Body Indexing of 10 equal divisions.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | Configuration | D Body Diameter | L Body Length | Body Engraving Depth | K - K.O. Hole Dia | B Center Insert Dia | F Cen. Ins. Length | MxP | TL - Thread Len. | Arrow Depth | Body Indexing | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DTEX10 | Assembly, Numbers 0 - 9 & Arrow | 10 | 12 | 0.22 | 4.0 ~ 8.0 | 6.3 | 11.7 | M2.5x0.35 | 4 | 0.5 | 10 Equal Divisions | $131.76 $98.82 | ||
| DTEX12 | Assembly, Numbers 0 - 9 & Arrow | 12 | 14 | 0.22 | 5.0 ~ 10.0 | 7.5 | 13.7 | M3.0x0.35 | 4.2 | 0.5 | 10 Equal Divisions | $158.85 $119.14 | ||
| DTEX16 | Assembly, Numbers 0 - 9 & Arrow | 16 | 14 | 0.22 | 5.0 ~ 13.0 | 11 | 13.7 | M4x0.35 | 4.8 | 0.5 | 10 Equal Divisions | $177.78 $133.34 | ||
| DTEX20 | Assembly, Numbers 0 - 9 & Arrow | 20 | 16 | 0.22 | 5.0 ~ 15.5 | 13.2 | 15.7 | M4x0.35 | 5.3 | 0.5 | 10 Equal Divisions | $195.08 $146.31 | ||
| DTEX4 | Assembly, Numbers 0 - 9 & Arrow | 4 | 8 | 0.12 | 3.0 ~ 3.5 | 2.4 | 7.7 | M1.6x0.2 | 2.7 | 0.22 | 12 Equal Divisions | $115.82 $86.86 | ||
| DTEX5 | Assembly, Numbers 0 - 9 & Arrow | 5 | 8 | 0.14 | 3.0 ~ 4.0 | 2.9 | 7.7 | M1.6x0.2 | 2.7 | 0.25 | 12 Equal Divisions | $136.05 $102.04 | ||
| DTEX6 | Assembly, Numbers 0 - 9 & Arrow | 6 | 8 | 0.18 | 3.0 ~ 5.0 | 3.7 | 7.7 | M1.6x0.2 | 2.7 | 0.4 | 10 Equal Divisions | $145.85 $109.39 | ||
| DTEX8 | Assembly, Numbers 0 - 9 & Arrow | 8 | 10 | 0.2 | 3.0 ~ 7.0 | 5 | 9.7 | M2.3x0.25 | 3.2 | 0.4 | 10 Equal Divisions | $142.74 $107.06 | ||
| DTEX-R10 | Body Only, Numbers 0 - 9 | 10 | 12 | 0.22 | 4.0 ~ 8.0 | 6.3 | N\A | N\A | N\A | N\A | 10 Equal divisions | $119.79 $89.84 | ||
| DTEX-R12 | Body Only, Numbers 0 - 9 | 12 | 14 | 0.22 | 5.0 ~ 10.0 | 7.5 | N\A | N\A | N\A | N\A | 10 Equal divisions | $128.61 $96.46 | ||
| DTEX-R16 | Body Only, Numbers 0 - 9 | 16 | 14 | 0.22 | 5.0 ~ 13.0 | 11 | N\A | N\A | N\A | N\A | 10 Equal divisions | $108.77 $81.58 | ||
| DTEX-R20 | Body Only, Numbers 0 - 9 | 20 | 16 | 0.22 | 5.0 ~ 15.5 | 13.2 | N\A | N\A | N\A | N\A | 10 Equal divisions | $116.18 $87.14 | ||
| DTEX-R4 | Body Only, Numbers 0 - 9 | 4 | 8 | 0.12 | 3.0 ~ 3.5 | 2.4 | N\A | N\A | N\A | N\A | 12 Equal divisions | $76.01 $57.01 | ||
| DTEX-R5 | Body Only, Numbers 0 - 9 | 5 | 8 | 0.14 | 3.0 ~ 4.0 | 2.9 | N\A | N\A | N\A | N\A | 12 Equal divisions | $93.10 $69.82 | ||
| DTEX-R6 | Body Only, Numbers 0 - 9 | 6 | 8 | 0.18 | 3.0 ~ 5.0 | 3.7 | N\A | N\A | N\A | N\A | 10 Equal divisions | $118.85 $89.14 | ||
| DTEX-R8 | Body Only, Numbers 0 - 9 | 8 | 10 | 0.2 | 3.0 ~ 7.0 | 5 | N\A | N\A | N\A | N\A | 10 Equal divisions | $115.52 $86.64 |
