- Unit of Measure - Inch
- Modular construction
- 6061-T6 Aluminum Material
- Anodized for corrosion protection
- Pre-drilled mounting holes
- Viton O-Rings and Tie Rods included
- 90° inlet available
- Maximum operating temperature – 400F/204C
- Made in the U.S.A.

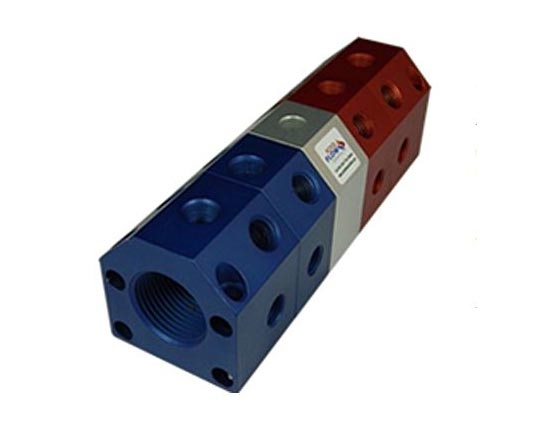

FB2 Port-To-Divide Assemblies
The modular design of the Kool Flow Manifold™ allows for changes to be made at any time according to your needs. FB2 Series manifolds have a 1" inlet hole size with the option of either a 1/4" or 3/8" outlet hole size. The Port to Divide Assembly combines your cooling needs into one manifold. Separate hot and cold with a mid block and mount in one easy location. Kool Flow Manifolds are also available with a 90° inlet option. Brass Kool Flow Manifolds are available for pH levels above 7.8. Send all Brass Kool Flow Manifold requests for quote to customcomponents@pcs-company.com.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | 90° Inlet | Block Size | Dimension A | Dimension B | Inlet Hole Size | Mounting Hole Size | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|
| FB2-1-4-PD | N/A | 2.25 x 2.25 | 4.13 | 4.75 | 1 NPT | 1/4 | $112.74 | ||
| FB2-1-6-PD | N/A | 2.25 x 2.25 | 4.13 | 4.75 | 1 NPT | 1/4 | $124.01 | ||
| FB2-2-4-PD | N/A | 2.25 x 2.25 | 6.63 | 7.25 | 1 NPT | 1/4 | $189.27 | ||
| FB2-2-6-PD | N/A | 2.25 x 2.25 | 6.63 | 7.25 | 1 NPT | 1/4 | $189.27 | ||
| FB2-3-4-PD | N/A | 2.25 x 2.25 | 9.13 | 9.75 | 1 NPT | 1/4 | $272.23 | ||
| FB2-3-6-PD | N/A | 2.25 x 2.25 | 9.13 | 9.75 | 1 NPT | 1/4 | $272.23 | ||
| FB2-4-4-PD | N/A | 2.25 x 2.25 | 11.63 | 12.25 | 1 NPT | 1/4 | $371.00 | ||
| FB2-4-6-PD | N/A | 2.25 x 2.25 | 11.63 | 12.25 | 1 NPT | 1/4 | $371.00 | ||
| FB2-5-4-PD | N/A | 2.25 x 2.25 | 14.13 | 14.75 | 1 NPT | 1/4 | $436.00 | ||
| FB2-5-6-PD | N/A | 2.25 x 2.25 | 14.13 | 14.75 | 1 NPT | 1/4 | $436.00 | ||
| FB290-1-4-PD | Yes | 2.25 x 2.25 | 5.13 | 5.75 | 1 NPT | 1/4 | $146.74 | ||
| FB290-1-6-PD | Yes | 2.25 x 2.25 | 5.13 | 5.75 | 1 NPT | 1/4 | $146.74 | ||
| FB290-2-4-PD | Yes | 2.25 x 2.25 | 7.63 | 8.25 | 1 NPT | 1/4 | $211.99 | ||
| FB290-2-6-PD | Yes | 2.25 x 2.25 | 7.63 | 8.25 | 1 NPT | 1/4 | $211.99 | ||
| FB290-3-4-PD | Yes | 2.25 x 2.25 | 10.13 | 10.75 | 1 NPT | 1/4 | $294.52 | ||
| FB290-3-6-PD | Yes | 2.25 x 2.25 | 10.13 | 10.75 | 1 NPT | 1/4 | $294.52 | ||
| FB290-4-4-PD | Yes | 2.25 x 2.25 | 12.63 | 13.25 | 1 NPT | 1/4 | $396.00 | ||
| FB290-4-6-PD | Yes | 2.25 x 2.25 | 12.63 | 13.25 | 1 NPT | 1/4 | $396.00 | ||
| FB290-5-4-PD | Yes | 2.25 x 2.25 | 15.13 | 15.75 | 1 NPT | 1/4 | $461.00 | ||
| FB290-5-6-PD | Yes | 2.25 x 2.25 | 15.13 | 15.75 | 1 NPT | 1/4 | $461.00 |
