- Unit of Measure - Inch
- Brass and Stainless Steel Construction
- Non Valved Only
- Eliminate In/Out Mistakes
- Hex shaped design
- Fits into the same space as standard round fittings
- To be used with plugs with NB part nunber suffix
- Standard barb stems
- Made in USA
- Made in the U.S.A.

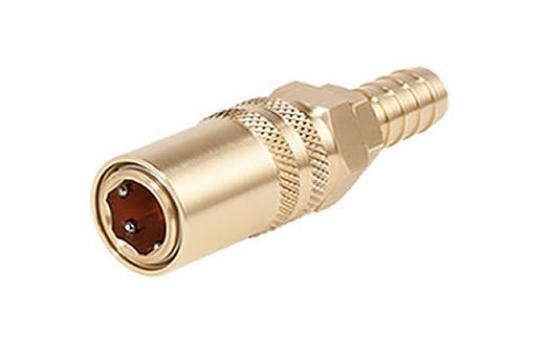

Socket Connectors Non-Interchangeable
The Non-Interchangable socket connectors have a patent pending hex design on the interior when used with the mating plug helps to eliminate mistakes in cooling connections. This design keeps the same flow diameters and clearance requirements as a standard connector.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | Series | Hole Size | Fits Hose I.D. | Stem Angle | Stem Type | Use With Plug | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|
| PS-204NB | 200 | 1/4 | 1/4 | Straight | Standard Barb | PC-250NB, PC-251NB, PC-252NB, PC-253NB | $7.13 | ||
| PS-206NB | 200 | 1/4 | 3/8 | Straight | Standard Barb | PC-250NB, PC-251NB, PC-252NB, PC-253NB | $7.58 | ||
| PS-216NB | 200 | 1/4 | 3/8 | 90 | Standard Barb | PC-250NB, PC-251NB, PC-252NB, PC-253NB | $8.83 | ||
| PS-306NB | 300 | 3/8 | 3/8 | Straight | Standard Barb | PC-351NB, PC-352NB, PC-353NB, PC-354NB | $8.53 | ||
| PS-308NB | 300 | 3/8 | 1/2 | Straight | Standard Barb | PC-351NB, PC-352NB, PC-353NB, PC-354NB | $9.39 | ||
| PS-318NB | 300 | 3/8 | 1/2 | 90 | Standard Barb | PC-351NB, PC-352NB, PC-353NB, PC-354NB | $10.74 | ||
| PS-506NB | 500 | 1/2 | 3/4 | Straight | Standard Barb | PC-552NB, PC-553NB, PC-554NB, PC-556NB | $14.27 |
