- Nitrided surface reduces galling
- Manufactured to JIS metric specifications

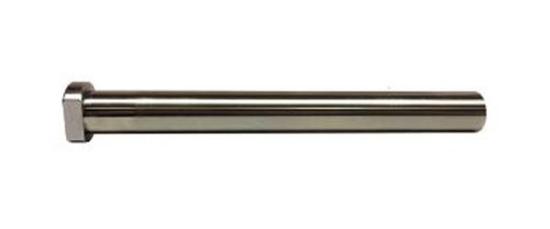

Metric JIS Nitrided Ejector Pins - D-Head
PCS Nitrided Ejector Pins are manufactured from precision ground hotwork steel. The surface hardness of each pin is nitrided to 65 - 74 Rc with a core hardness of 50 - 52 Rc.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | Actual Pin Diameter | Actual Pin Diameter Tolerance | Annealed Head | H Head Diameter | L Overall Length | T Head Thickness | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|
| DJMP04-350 | 4 | -0.01 -0.02 | YES | 8 | 350 | 6 | $9.58 | ||
| DJMP06-350 | 6 | -0.01 -0.02 | YES | 10 | 350 | 6 | $13.24 | ||
| DJMP06-500 | 6 | -0.01 -0.02 | YES | 10 | 500 | 6 | $13.98 | ||
| DJMP07-500 | 7 | -0.01 -0.02 | YES | 11 | 500 | 6 | $15.29 | ||
| DJMP08-500 | 8 | -0.01 -0.02 | YES | 13 | 500 | 8 | $16.29 | ||
| DJMP12-500 | 12 | -0.01 -0.02 | YES | 17 | 500 | 8 | $25.64 |
