- 4 Flute Coated Solid Carbide
- AlTiN Coated for longer tool life
- Premium micro grain carbide
- H6 Shank tolerance for heat shrink applications
- Cutting diameter tolerance +.0000 - .0015
- Designed for rough cut and finish milling
- Ideal for hard to machine materials such as P-20, Stainless Steel and pre-heat treated metals up to 45 HRc
- Made in the U.S.A.

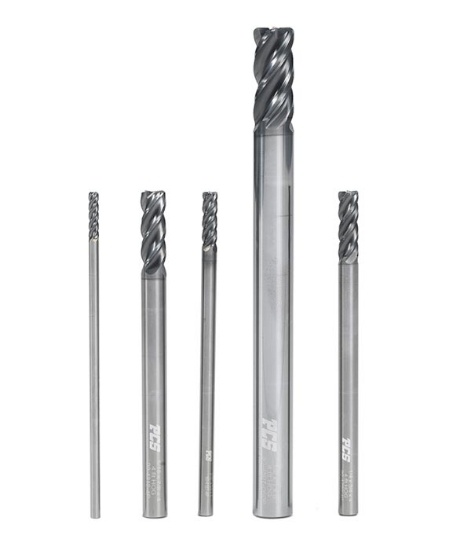

Corner Radius Extended Reach End Mill
Variable 4 Flute Coated Solid Carbide End Mills - Corner Radius Extended Reach
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | Flute Diameter | Corner Radius | Flute Length | Overall Length | Shank Diameter | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|
| 90-4125-4P | 1/8 | 0.020 | 1/2 | 4 | 0.125 | $37.13 | ||
| 90-4187-4P | 3/16 | 0.020 | 5/8 | 4 | 0.1875 | $41.00 | ||
| 90-4250-4P | 1/4 | 0.020 | 3/4 | 4 | 0.25 | $54.95 | ||
| 90-4312-4P | 5/16 | 0.020 | 7/8 | 4 | 0.3125 | $71.15 | ||
| 90-4375-4P | 3/8 | 0.020 | 7/8 | 4 | 0.375 | $81.25 | ||
| 90-4507-060P | 1/2 | 0.060 | 1 | 6 | 0.5 | $161.40 |
