- Replacement blocks available
- Replacement hardware available
- 90° inlet available
- Maximum operating temperature – 400F/204C
- Made in the U.S.A.

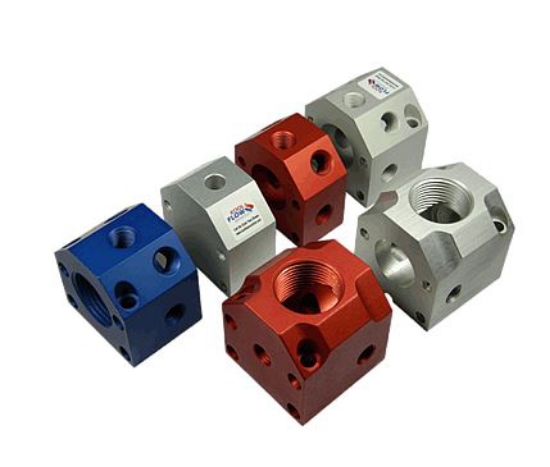

FB3 Individual Components
The modular design of the Kool Flow Manifold™ allows for changes to be made at any time according to your needs. FB3 Series manifolds have an option for a 1-1/4" or 1-1/2" inlet hole size along with the option of either a 3/8" or 1/2" outlet hole size.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | Description | Inlet Hole Size | Outlet Hole Size | Block Color | No. of Outlets | Mounting Hole Size | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|
| FB3-FB-1.25-6-B | First Block-Straight | 1 1/4 NPT | 3/8 NPT | Blue | 5 | 5/16 | $54.98 | ||
| FB3-FB-1.25-6-R | First Block-Straight | 1 1/4 NPT | 3/8 NPT | Red | 5 | 5/16 | $54.98 | ||
| FB3-FB-1.25-8-B | First Block-Straight | 1 1/4 NPT | 1/2 NPT | Blue | 5 | 5/16 | $54.98 | ||
| FB3-FB-1.25-8-R | First Block-Straight | 1 1/4 NPT | 1/2 NPT | Red | 5 | 5/16 | $54.98 | ||
| FB3-FB-1.5-6-B | First Block-Straight | 1 1/2 NPT | 3/8 NPT | Blue | 5 | 5/16 | $54.98 | ||
| FB3-FB-1.5-6-R | First Block-Straight | 1 1/2 NPT | 3/8 NPT | Red | 5 | 5/16 | $54.98 | ||
| FB3-FB-1.5-8-B | First Block-Straight | 1 1/2 NPT | 1/2 NPT | Blue | 5 | 5/16 | $54.98 | ||
| FB3-FB-1.5-8-R | First Block-Straight | 1 1/2 NPT | 1/2 NPT | Red | 5 | 5/16 | $54.98 | ||
| FB3-FB90-1.25-6-B | First Block-90° | 1 1/4 NPT | 3/8 NPT | Blue | 3 | 5/16 | $98.81 | ||
| FB3-FB90-1.25-6-R | First Block-90° | 1 1/4 NPT | 3/8 NPT | Red | 3 | 5/16 | $98.81 | ||
| FB3-FB90-1.25-8-B | First Block-90° | 1 1/4 NPT | 1/2 NPT | Blue | 3 | 5/16 | $98.81 | ||
| FB3-FB90-1.25-8-R | First Block-90° | 1 1/4 NPT | 1/2 NPT | Red | 3 | 5/16 | $98.81 | ||
| FB3-FB90-1.5-6-B | First Block-90° | 1 1/2 NPT | 3/8 NPT | Blue | 3 | 5/16 | $98.81 | ||
| FB3-FB90-1.5-6-R | First Block-90° | 1 1/2 NPT | 3/8 NPT | Red | 3 | 5/16 | $98.81 | ||
| FB3-FB90-1.5-8-B | First Block-90° | 1 1/2 NPT | 1/2 NPT | Blue | 3 | 5/16 | $98.81 | ||
| FB3-FB90-1.5-8-R | First Block-90° | 1 1/2 NPT | 1/2 NPT | Red | 3 | 5/16 | $98.81 | ||
| FB3-MIDB-1 | Mid Block | N/A | N/A | Silver | N/A | 5/16 | $28.89 | ||
| FB3-MOD-6-B | Mod Block | N/A | 3/8 NPT | Blue | 5 | N/A | $35.32 | ||
| FB3-MOD-6-R | Mod Block | N/A | 3/8 NPT | Red | 5 | N/A | $35.32 | ||
| FB3-MOD-8-B | Mod Block | N/A | 1/2 NPT | Blue | 5 | N/A | $35.32 | ||
| FB3-MOD-8-R | Mod Block | N/A | 1/2 NPT | Red | 5 | N/A | $35.32 | ||
| FB3-OR-1 | Viton O-Ring | N/A | N/A | N/A | N/A | N/A | $1.48 | ||
| FB3-SHCS-05 | #10-32 X 3/4” SS SHCS | N/A | N/A | N/A | N/A | N/A | $0.43 | ||
| FB3-SHCS-1 | #10-32 x 1" SS SHCS | N/A | N/A | N/A | N/A | N/A | $0.53 | ||
| FB3-SHCS-2 | #10-32 x 1-1/4" SS SHCS | N/A | N/A | N/A | N/A | N/A | $0.67 | ||
| FB3-SHCS-MNT | 1/4"-20 x 2" SS SHCS | N/A | N/A | N/A | N/A | N/A | $0.75 | ||
| FB3-TR-1 | #10-32 Tie Rod (Single Block) | N/A | N/A | N/A | N/A | N/A | $1.09 |
