- Manufactured to OEM Specifications
- Profiled heat distribution
- DME equivalents replacements
- 120/240 volt
- J type thermocouple when supplied internally
- Made in the U.S.A.

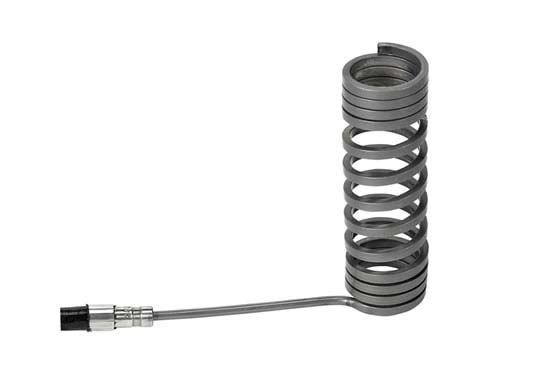

Coil Heaters - DME OEM Replacement
PCS Company's Coil Heaters are DME OEM replacement heaters to be used in hot sprue bushings or hot runner systems. These are direct OEM replacements coil heaters offered in 120 and 240 volts. Lead protection is either fiberglass or stainless steel armor. Coil heaters with internal thermocouples with be J type. Fill out our easy to use form for custom coil heaters.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | I.D. | Width | Watts | Volts | T/C | Lead Length | Lead Protection | Lead Exit | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SCH0003 | .625" | 1" | 225 | 240 | Yes | 42" | Fiberglass | Radial | $161.56 | ||
| SCH0004 | .750" | 1.700" | 250 | 240 | No | 42" | Fiberglass | Radial | $124.50 | ||
| SCH0060 | .750" | 1-7/16" | 250 | 240 | No | 36" | Fiberglass | Radial | $140.89 | ||
| SCH0061 | .750" | 1-15/16" | 300 | 240 | No | 36" | Fiberglass | Radial | $149.15 | ||
| SCH0062 | .750" | 2-7/16" | 350 | 240 | No | 36" | Fiberglass | Radial | $161.88 | ||
| SCH0063 | .750" | 2-15/16" | 400 | 240 | No | 36" | Fiberglass | Radial | $174.39 | ||
| SCH0064 | .750" | 3-7/16" | 425 | 240 | No | 36" | Fiberglass | Radial | $186.94 | ||
| SCH0065 | .750" | 4-7/16" | 500 | 240 | No | 36" | Fiberglass | Radial | $195.70 | ||
| SCH0066 | .750" | 5-7/16" | 500 | 240 | No | 36" | Fiberglass | Radial | $203.95 | ||
| SCH0081 | .625" | 2" | 300 | 240 | Yes | 36" | Fiberglass | Radial | $194.71 | ||
| SCH0082 | .625" | 2-1/2" | 350 | 240 | Yes | 36" | Fiberglass | Radial | $202.77 | ||
| SCH0083 | .625" | 3" | 400 | 240 | Yes | 36" | Fiberglass | Radial | $226.44 | ||
| SCH0084 | .625" | 3-1/2" | 425 | 240 | Yes | 36" | Fiberglass | Radial | $215.34 | ||
| SCH0085 | .625" | 4" | 500 | 240 | Yes | 36" | Fiberglass | Radial | $204.28 | ||
| SCH0086 | .625" | 5" | 500 | 240 | Yes | 36" | Fiberglass | Radial | $228.16 | ||
| SCH0087 | .625" | 6" | 550 | 240 | Yes | 36" | Fiberglass | Radial | $244.85 | ||
| SCH0088 | .875" | 2-5/8" | 400 | 240 | Yes | 36" | Fiberglass | Radial | $194.79 | ||
| SCH0089 | .875" | 2-5/8" | 450 | 240 | Yes | 36" | Fiberglass | Radial | $232.36 | ||
| SCH0090 | .875" | 3-1/8" | 550 | 240 | Yes | 36" | Fiberglass | Radial | $230.04 | ||
| SCH0091 | .875" | 3-5/8" | 700 | 240 | Yes | 36" | Fiberglass | Radial | $227.95 | ||
| SCH0092 | .875" | 4-1/8" | 800 | 240 | Yes | 36" | Fiberglass | Radial | $296.97 | ||
| SCH0093 | .875" | 5 1/8" | 900 | 240 | Yes | 36" | Fiberglass | Radial | $276.57 | ||
| SCH0094 | .875" | 6-1/8" | 1000 | 240 | Yes | 36" | Fiberglass | Radial | $279.95 | ||
| SCH0095 | .875" | 7 1/8" | 1100 | 240 | Yes | 36" | Fiberglass | Radial | $286.27 | ||
| SCH3142 | .750" | 1-11/16" | 315 | 240 | No | 42" | Fiberglass | Radial | $146.16 | ||
| SCH3242 | .750" | 2-11/16" | 315 | 240 | No | 42" | Fiberglass | Radial | $180.15 | ||
| SSTC31 | .500" | 4-5/8" | 300 | 120 | Yes | 48" | SS Armor | Radial | $245.86 | ||
| SSTC3190 | .500" | 4-5/8" | 300 | 120 | Yes | 48" | SS Armor | Radial | $245.86 | ||
| SSTC32 | .500" | 4-5/8" | 300 | 240 | Yes | 48" | SS Armor | Radial | $245.86 | ||
| SSTC3290 | .500" | 4-5/8" | 300 | 240 | Yes | 48" | SS Armor | Radial and 90° | $245.86 | ||
| SSTC42 | .500" | 2-1/2" | 460 | 240 | Yes | 48" | SS Armor | Radial | $198.26 | ||
| SSTC4290 | .500" | 2-1/2" | 460 | 240 | Yes | 48" | SS Armor | Radial and 90° | $198.26 | ||
| SSTC6290 | .500" | 1-7/16" | 250 | 240 | Yes | 48" | SS Armor | Radial and 90° | $171.29 | ||
| SSTC7290 | .500" | 1-15/16" | 250 | 240 | Yes | 48" | SS Armor | Radial and 90° | $179.87 |
