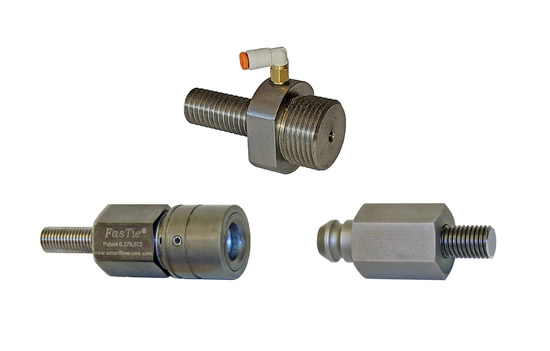

Smartflow® FasTie® 2" Components

PCS Company offers Smartflow® FasTie® 2" Components include couplers, pull studs and center adapters. Ejection applications range from typical, alternate and center ejection. Click here for Finished Bar Fixed Length Knockout to be used in a typical application.

Maximum Operating Temperature - 300°F (149°C)
Air Pressure Range - 80-100 psi
Pull Stud Material - Hardened Steel ( 58-62 Rc)
Knockout Bar and Coupler Material - High Strength Steel
Threaded Studs - B7 Alloy or Comparable
Air Manifold Material - Aluminum
Air Tubing Material - 1/8"OD Nylon

Item Number	Description	Thread Length	Thread	Price (USD)
FTCA2-75	Center Adapter	1.5"	3/4-10	$130.00
FTCA2-M16	Center Adapter	1.5"	M16 x 2	$187.00
FTCA2-M20	Center Adapter	1.5"	M20 x 2.5	$187.00
FTF2-113X	Coupler	2"	1-1/8-12 (F)	$447.00
FTF2-63	Coupler	2"	5/8-11	$488.00
FTF2-75	Coupler	2"	3/4-10	$488.00
FTF2-M16	Coupler	2"	M16 x 2	$543.00
FTF2-M20	Coupler	2"	M20 x 2.5	$543.00
FTM2-63	Pull Stud	1.5"	5/8-11	$112.00
FTM2-75	Pull Stud	1.5"	3/4-10	$112.00
FTM2-M16	Pull Stud	1.5"	M16 x 2	$134.00
FTM2-M20	Pull Stud	1.5"	M20 x 2.5	$134.00
