- Unit of Measure - Inch
- Provides positive alignment between mold halves
- Maintains alignment while allowing for thermal expansion
- Shock resistant S-7 tool steel
- Hardened and precision ground to assure interchangeability
Tapered Bar Locks

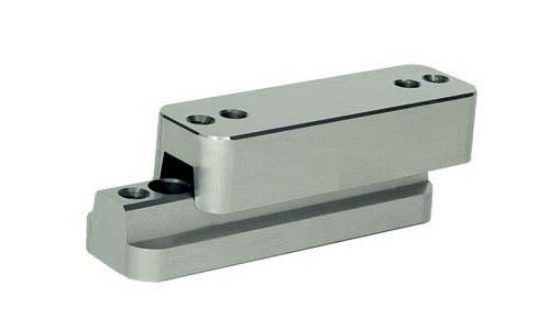

Tapered Bar Locks provide positive alignment between mold halves. These locks are manufactured from S-7 steel and are hardened and precision ground to ensure interchangeability. Tapered Bar Locks maintain alignment of the mold while allowing for thermal expansion.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | L Overall Length | A Ref. Mounting Hole Location from Edge | B Male Member Base Height | H Female Member Base Height | R Corner Radius | SHCS Female | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|
| FBL-20 | 1.98 | N/A | N/A | 0.69 | 0.25 | #10-24 | $151.15 | ||
| FBL-40 | 3.98 | N/A | N/A | 0.87 | 0.312 | 1/4-20 | $200.84 | ||
| FBL-60 | 5.98 | N/A | N/A | 1 | 0.375 | 5/16-18 | $274.15 | ||
| MBL-20 | 1.98 | CTR | 0.312 | N/A | 0.25 | #10-24 | $151.15 | ||
| MBL-40 | 3.98 | 0.74 | 0.375 | N/A | 0.312 | 1/4-20 | $200.84 | ||
| MBL-60 | 5.98 | 0.99 | 0.5 | N/A | 0.375 | 5/16-18 | $274.15 |
