- Reduces stringing, freeze off, and splay
- Dead spots are eliminated
- Radius to angle provides better flow
- Material: H-13
- Hardness: 42-46 HRc

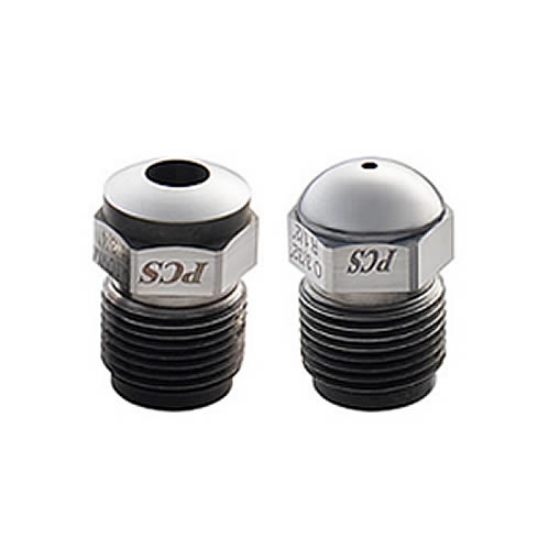

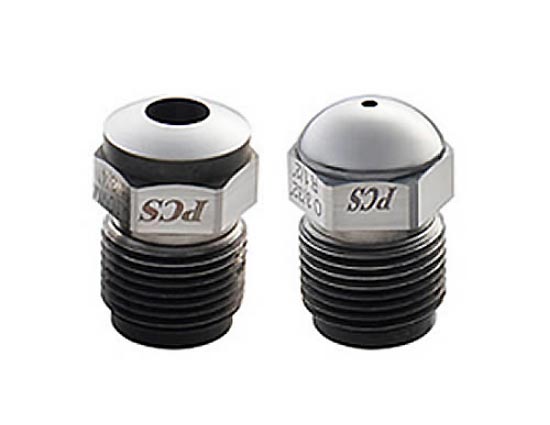

Cold & Hot Runner Machine Nozzle Tips
PCS Company's cold sprue and hot runner machine nozzle tips promise utility across a wide range of materials, eliminating the need to swap out different tips for different jobs while also promising to solve scrap and process issues. Eliminate stringing and drooling when using cold sprue bushings with the CRT tip. For hot runner systems and hot sprue bushings, use the HRT to ensure uninterupted flow through the machine nozzle tip.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | Overall Length | Hex Size | Orifice | Radius | Rear Opening | Thread | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|
| CRT0018-50 | 1.500" | 0.875" | 1/8" | 1/2" | 1/2" | 7/8"-14 | $46.51 | ||
| CRT0018-75 | 1.500" | 0.875" | 1/8" | 3/4" | 1/2" | 7/8"-14 | $46.51 | ||
| CRT0332-50 | 1.500" | 0.875" | 3/32" | 1/2" | 1/2" | 7/8"-14 | $46.51 | ||
| CRT0332-75 | 1.500" | 0.875" | 3/32" | 3/4" | 1/2" | 7/8"-14 | $46.51 | ||
| HRT008-50 | 1.500" | 0.875" | 8mm | 1/2" | 1/2" | 7/8"-14 | $46.51 | ||
| HRT008-75 | 1.500" | 0.875" | 8mm | 3/4" | 1/2" | 7/8"-14 | $46.51 | ||
| HRT010-50 | 1.500" | 0.875" | 10mm | 1/2" | 1/2" | 7/8"-14 | $46.51 | ||
| HRT010-75 | 1.500" | 0.875" | 10mm | 3/4" | 1/2" | 7/8"-14 | $46.51 |
