- Unit of Measure - Metric
- Hardness 58-60 HRC
- Material: 1.4125 Stainless Steel

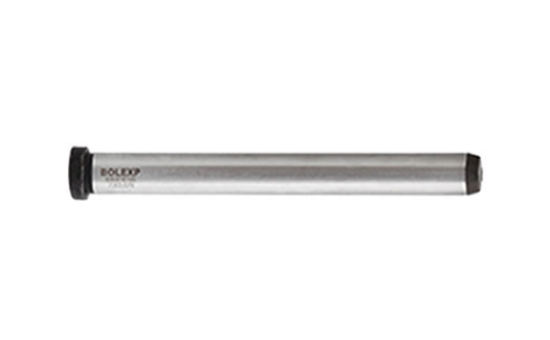

Metric Stainless Steel Leader Pin - Column - B858
The Bolexp metric stainless steel leader pins are made of surface hardened steel that leaves the core soft to absorb any bending that my occur.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | d1 Pin Diameter | L Overall Length | d2 Head Diameter | a Head Thickness | b Lead Length | c Press Fit Length | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|
| B85812080 | 12 | 80 | 16 | 4 | 4 | 16 | $26.18 | ||
| B85812100 | 12 | 100 | 16 | 4 | 4 | 16 | $29.98 | ||
| B85816100 | 16 | 100 | 20 | 6 | 6 | 20 | $34.37 | ||
| B85816125 | 16 | 125 | 20 | 6 | 6 | 20 | $39.61 | ||
| B85820125 | 20 | 125 | 24 | 6 | 6 | 22 | $54.08 | ||
| B85820160 | 20 | 160 | 24 | 6 | 6 | 22 | $62.69 | ||
| B85825160 | 25 | 160 | 30 | 6 | 6 | 25 | $65.62 | ||
| B85825200 | 25 | 200 | 30 | 6 | 6 | 25 | $77.98 |
