- Curved tunnel permits gating deep inside the part
- Integrated dead-end recess reduces loss of pressure and shear stress
- Highly wear-resistant hot working steel M2 (1.3343) – 54+2 HRC
- Unit of Measure - Millimeters

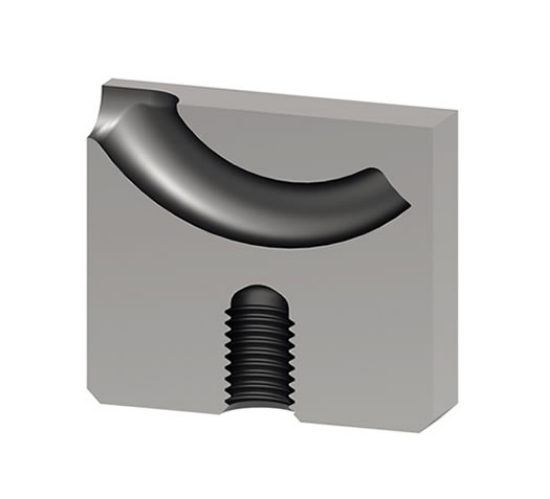

i-mold Side Gating SGC
PCS Company offers i-mold SGC Tunnel Gate Insert for side gating applications. The SGC tunnel gate inserts are curved to allow for gating deep inside the part and are suitable for all resins. Request technical assistance for your application. Include the 3D data of the part in assembly with core and cavity splits, drawing or image clearly indicating your gate location requirement plus specific resin grade technical datasheet.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | b Length | b1 Width | h Height | d1 Gate | d3 Runner | M Thread | Shot Wt.(g) - High flow | Shot Wt.(g) - Med flow | Shot Wt.(g) - Low flow | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SGC-1 | 18 | 8 | 22 | 0.6-1.4 | 4 | 5 | 35 | 25 | 15 | $152.22 | ||
| SGC-2 | 25 | 10 | 22 | 0.8-2.1 | 6 | 5 | 250 | 120 | 90 | $171.26 | ||
| SGC-3 | 30 | 12 | 27 | 1.1-3.3 | 8 | 6 | 1000 | 500 | 300 | $205.51 | ||
| SGC-S | 15 | 6 | 18 | 0.4-1 | 2.5 (max.3.5) | 4 | 20 | 12 | 8 | $145.89 | ||
| SGC-XS | 10 | 5 | 12 | 0.4-0.8 | 2.5 (max.3.5) | 4 | 12 | 7 | 5 | $143.70 |
