- Unit of Measure - Inch
- Easy Hex Key installation
- Angular flow path allows connecting fittings to be torqued tight without choking off flow
- One piece construction insures complete removal
- Made in the U.S.A.

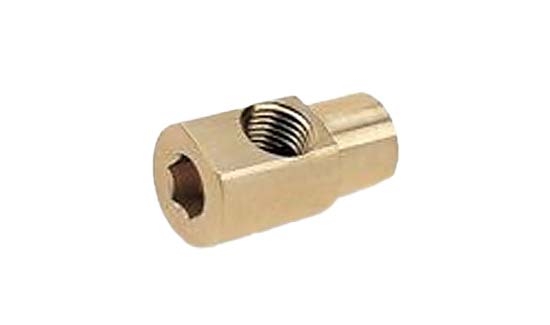

Hex Key Female to Female Street Elbows
Hex Key Female to Female Street Elbows feature 300% more torque capacity than standard pipe plugs. The angular coolant path prevents fitting interference at assembly and guarantees full flow.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | A Input Pipe Size | B Output Pipe Size | E Input Pipe Location | Hex Size | L Overall Length | Min. Clearance Diameter | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|
| HKL-14 | 1/4 | 1/4 | .660 | 3/8 | 1.500 | 7/8 | $5.16 | ||
| HKL-1438 | 1/4 | 3/8 | .660 | 3/8 | 1.5 | 7/8 | $6.85 | ||
| HKL-16 | 1/16 | 1/16 | .531 | 1/4 | 1.125 | 9/16 | $5.15 | ||
| HKL-1618 | 1/16 | 1/8 | .531 | 1/4 | 1.125 | 9/16 | $5.35 | ||
| HKL-18 | 1/8 | 1/8 | .580 | 5/16 | 1.250 | 5/8 | $4.26 | ||
| HKL-1814 | 1/8 | 1/4 | .580 | 5/16 | 1.25 | 5/8 | $5.16 | ||
| HKL-38 | 3/8 | 3/8 | .780 | 1/2 | 1.750 | 1 | $6.85 | ||
| HKL-50 | 1/2 | 1/2 | .940 | 1/2 | 2.125 | 1-1/4 | $10.60 |
