- Used when backed up by other mold inserts, holder block, or mold plates
- Requires less space than NPT pipe plugs
- Standard Buna o-ring provides seal to 210°
- Less interference in tight spaces

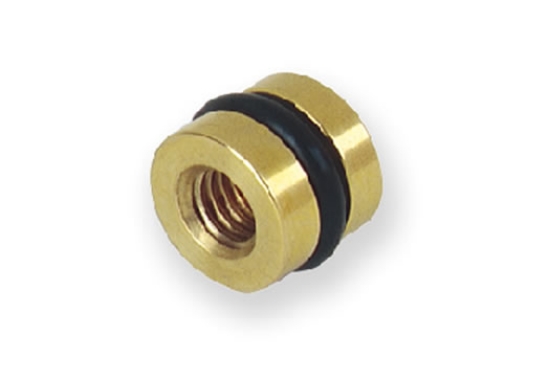

O-Ring Plugs
O-Ring Plugs are used when backed up by other mold inserts, holder block or mold plates. These plugs require less space than NPT pipe plugs which makes them great in tight spaces.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | B Plug Overall Length | B Plug Overall Length Tolerance | D Mating Pocket Depth | D Mating Pocket Depth Tolerance | Material Type | Ream Size | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|
| OR-06 | 0.25 | +.000 / -.005 | 0.25 | +.005 -.000 | Brass and Buna-N O-ring | 0.281 | $1.44 | ||
| OR-100 | 0.625 | +.000 / -.005 | 0.625 | +.005 -.000 | Brass and Buna-N O-ring | 1.187 | $4.07 | ||
| OR-12 | 0.3125 | +.000 / -.005 | 0.312 | +.005 -.000 | Brass and Buna-N O-ring | 0.375 | $1.45 | ||
| OR-25 | 0.3125 | +.000 / -.005 | 0.312 | +.005 -.000 | Brass and Buna-N O-ring | 0.5 | $1.45 | ||
| OR-38 | 0.4375 | +.000 / -.005 | 0.437 | +.005 -.000 | Brass and Buna-N O-ring | 0.625 | $1.69 | ||
| OR-50 | 0.5 | +.000 / -.005 | 0.5 | +.005 -.000 | Brass and Buna-N O-ring | 0.75 | $2.09 | ||
| OR-75 | 0.625 | +.000 / -.005 | 0.625 | +.005 -.000 | Brass and Buna-N O-ring | 1 | $3.34 |
