- 2 Flute Coated Solid Carbide
- AlTiN Coated for longer tool life
- Premium micro grain carbide
- H6 Shank tolerance for heat shrink applications
- Cutting diameter tolerance +.0000 - .0015
- Eliminates rough finish commonly left by typical 4 flute tools
- Made in the U.S.A.

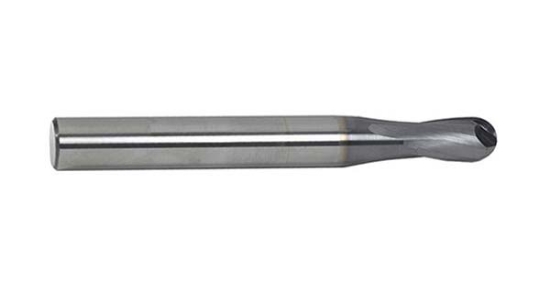

Ball Nose End Mill - Inch
2 Flute Coated Solid Carbide Ball Nose End Mills. AlTiN Coated for longer tool life.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | Flute Diameter | Flute Length | Overall Length | Shank Diameter | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|
| 80-2125P | 1/8 | 1/2 | 4 | 0.125 | $31.93 | ||
| 80-2126P | 1/8 | 1/2 | 6 | 0.125 | $38.37 | ||
| 80-2187P | 3/16 | 3/4 | 4 | 0.3125 | $39.10 | ||
| 80-2188P | 3/16 | 3/4 | 6 | 0.1875 | $53.63 | ||
| 80-2250P | 1/4 | 3/4 | 4 | 0.25 | $51.53 | ||
| 80-2251P | 1/4 | 3/4 | 6 | 0.25 | $61.52 | ||
| 80-2312P | 5/16 | 3/4 | 4 | 0.3125 | $63.08 | ||
| 80-2313P | 5/16 | 3/4 | 6 | 0.3125 | $80.44 | ||
| 80-2375P | 3/8 | 7/8 | 4 | 0.375 | $79.29 | ||
| 80-2376P | 3/8 | 7/8 | 6 | 0.375 | $96.47 | ||
| 80-2377P | 3/8 | 7/8 | 8 | 0.375 | $158.33 | ||
| 80-2500P | 1/2 | 1 | 4 | 0.5 | $118.89 | ||
| 80-2501P | 1/2 | 1 | 6 | 0.5 | $152.75 | ||
| 80-2502P | 1/2 | 1 | 8 | 0.5 | $209.90 | ||
| 80-2503P | 1/2 | 1 | 12 | 0.5 | $356.42 |
