- Unit of Measure - Inch
- Aids in quick & efficient assembly and disassembly of cooling circuit
- Made from Solid Brass and Stainless Steel
- Made in the U.S.A.

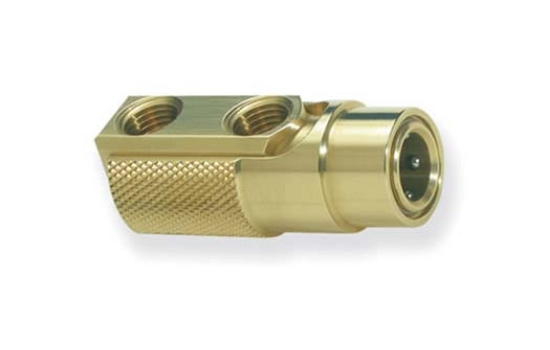

Quick-Coupler Cascade Replacement Heads
Quick-Coupler Replacement Heads aid in the assembly and disassembly of cooling circuits.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | Connector Series | Head Width | Length | O.D. | Outlet Hole Location | Outlet Hole Spread | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|
| SC121H-6 | 300 | 1 | 3.125 | 1-3/8 | 1-3/8 | 1-1/4 | $38.35 | ||
| SC141H-4 | 200 | 13/16 | 2.5 | 1-1/8 | 1-5/32 | 1 | $27.66 | ||
| SC146H-4 | 300 | 1 | 2.187 | 1-1/8 | 1-5/32 | 11/16 | $25.36 | ||
| SC181H | 200 | 13/16 | 2.25 | 7/8 | 31/32 | 1 | $23.67 | ||
| SC186H | 500 | 1.25 | 1.937 | 7/8 | 31/32 | 11/16 | $22.01 |
