- Made in U.S.A.
- 10', 15', 20' and 30' lengths
- Industry standard single, 5, 8 and 12 zone connections
- Single zone combination cables come in metal or plastic connector hoods

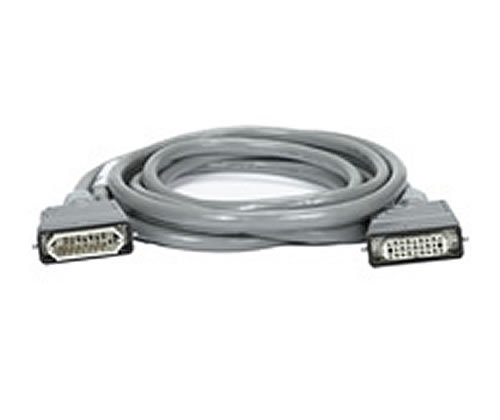

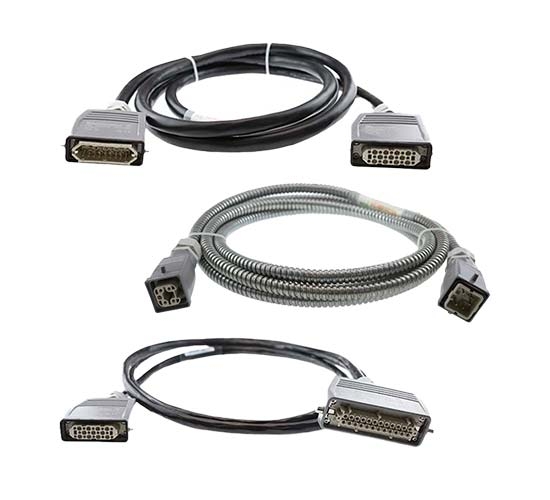

Power and Thermocouple Cables
PCS Company's Power and Thermocouple Cables are the industry standard to control 1, 5, 8 and 12 zones ( 15 amps ). PCS Power and Thermocouple Cables are available in 10, 15, 20 and 30 foot lengths depending on the zone requirement. Standard connection configurations ensure proper connection between the hot runner or hot sprue bushing and temperature controller. The VC-12PC, VC-12PC10, VC-12PC20 or VC-12PC30 is the universal power cable to connect any 15 amp PCS hot runner controller to your mold. The number of zones will be determined by the connector on the mold. The single zone combination cables are offered in both metal and plastic connector hoods. Contact PCS for special cables built to your specifications.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | No of Zones | Cable Type | Length (ft) | Mold End Connector | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|
| VC-12PC | 12 | Mold Power Cable | 15 | VC-12MPC | $206.40 | ||
| VC-12PC10 | 12 | Mold Power Cable | 10 | VC-12MPC | $178.88 | ||
| VC-12PC20 | 12 | Mold Power Cable | 20 | VC-12MPC | $233.92 | ||
| VC-12PC30 | 12 | Mold Power Cable | 30 | VC-12MPC | $288.96 | ||
| VC-12TC | 12 | Thermocouple Cable | 15 | VC-12MTC | $180.26 | ||
| VC-12TC10 | 12 | Thermocouple Cable | 10 | VC-12MTC | $162.37 | ||
| VC-12TC20 | 12 | Thermocouple Cable | 20 | VC-12MTC | $199.52 | ||
| VC-12TC30 | 12 | Thermocouple Cable | 30 | VC-12MTC | $300.42 | ||
| VC-5PC | 5 | Mold Power Cable | 15 | VC-5MPC | $133.47 | ||
| VC-5PC10 | 5 | Mold Power Cable | 10 | VC-5MPC | $116.96 | ||
| VC-5PC20 | 5 | Mold Power Cable | 20 | VC-5MPC | $151.36 | ||
| VC-5TC | 5 | Thermocouple Cable | 15 | VC-5MTC | $120.66 | ||
| VC-5TC10 | 5 | Thermocouple Cable | 10 | VC-5MTC | $110.36 | ||
| VC-5TC20 | 5 | Thermocouple Cable | 20 | VC-5MTC | $132.43 | ||
| VC-8PC | 8 | Mold Power Cable | 15 | VC-8MPC | $165.12 | ||
| VC-8PC10 | 8 | Mold Power Cable | 10 | VC-8MPC | $144.48 | ||
| VC-8PC20 | 8 | Mold Power Cable | 20 | VC-8MPC | $185.76 | ||
| VC-8TC | 8 | Thermocouple Cable | 15 | VC-8MTC | $149.98 | ||
| VC-8TC10 | 8 | Thermocouple Cable | 10 | VC-8MTC | $144.20 | ||
| VC-8TC20 | 8 | Thermocouple Cable | 20 | VC-8MTC | $165.12 | ||
| VC-MPTC-10 | 1 | Power and Thermocouple Combination Cable-Metal | 10 | CKPTIC-1 | $90.00 | ||
| VC-MPTC-10-P | 1 | Power and Thermocouple Combination Cable-Plastic | 10 | CKPTIC-1 | $86.00 | ||
| VC-MPTC-15 | 1 | Power and Thermocouple Combination Cable-Metal | 15 | CKPTIC-1 | $121.73 | ||
| VC-MPTC-15-P | 1 | Power and Thermocouple Combination Cable-Plastic | 15 | CKPTIC-1 | $105.00 | ||
| VC-MPTC-20 | 1 | Power and Thermocouple Combination Cable-Metal | 20 | CKPTIC-1 | $128.00 | ||
| VC-MPTC-20-P | 1 | Power and Thermocouple Combination Cable-Plastic | 20 | CKPTIC-1 | $120.00 |
