- Ensures positive return of ejector system
- Manufactured from precision hot work steel
- Nitrided

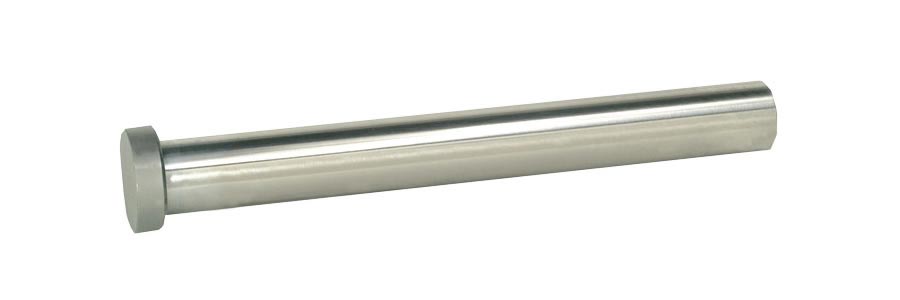

Return Pins - Nitrided
PCS Return Pins are manufactured from precision ground hotwork steel. The surface hardness of each pin is nitrided to 65 - 74 Rc with a core hardness of 45 - 50 Rc.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | D Pin Diameter | H Head Diameter | L Overall Length | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|
| RP-50 | 0.5 | 0.75 | 3-9/16 | $6.42 | ||
| RP-51 | 0.5 | 0.75 | 4-1/16 | $6.70 | ||
| RP-52 | 0.5 | 0.75 | 4-9/16 | $6.98 | ||
| RP-53 | 0.5 | 0.75 | 5-1/16 | $7.32 | ||
| RP-54 | 0.5 | 0.75 | 5-9/16 | $7.67 | ||
| RP-55 | 0.5 | 0.75 | 6-1/16 | $7.95 | ||
| RP-56 | 0.5 | 0.75 | 6-9/16 | $8.25 | ||
| RP-60 | 0.625 | 0.875 | 4-1/16 | $9.86 | ||
| RP-61 | 0.625 | 0.875 | 4-9/16 | $10.39 | ||
| RP-62 | 0.625 | 0.875 | 5-1/16 | $11.00 | ||
| RP-63 | 0.625 | 0.875 | 5-9/16 | $11.53 | ||
| RP-64 | 0.625 | 0.875 | 6-1/16 | $12.07 | ||
| RP-65 | 0.625 | 0.875 | 6-9/16 | $12.66 | ||
| RP-66 | 0.625 | 0.875 | 7-1/16 | $13.21 | ||
| RP-67 | 0.625 | 0.875 | 7-9/16 | $13.75 | ||
| RP-68 | 0.625 | 0.875 | 8-1/16 | $14.26 | ||
| RP-70 | 0.75 | 1 | 4-15/16 | $14.44 | ||
| RP-71 | 0.75 | 1 | 5-7/16 | $15.05 | ||
| RP-72 | 0.75 | 1 | 5-15/16 | $15.33 | ||
| RP-73 | 0.75 | 1 | 6-7/16 | $16.27 | ||
| RP-74 | 0.75 | 1 | 6-15/16 | $17.03 | ||
| RP-75 | 0.75 | 1 | 7-7/16 | $17.40 | ||
| RP-76 | 0.75 | 1 | 7-15/16 | $18.17 | ||
| RP-77 | 0.75 | 1 | 8-7/16 | $18.65 | ||
| RP-78 | 0.75 | 1 | 8-15/16 | $19.38 | ||
| RP-79 | 0.75 | 1 | 9-7/16 | $20.15 |
