- Can be used as an ejector or core pin
- Surface is hardened to 65-74 Rc
- Core is hardened to 48-55 Rc
- Material Type - H13
- All pins of diameter 3/32" and greater are etched for easy identification
- Unit of Measure - Inch

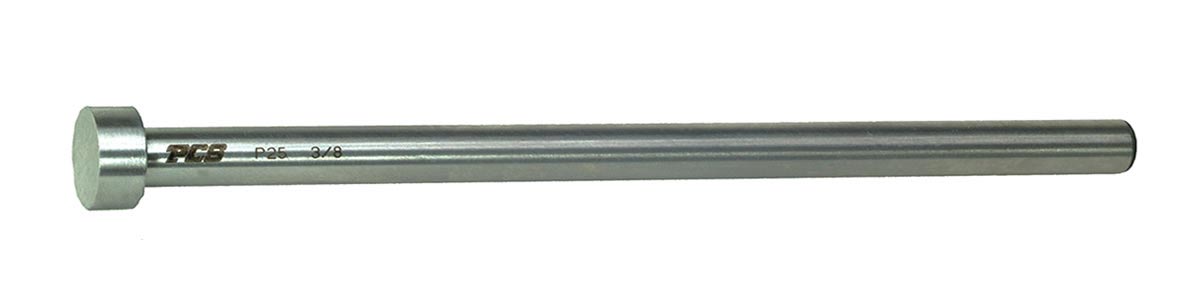

Hardened Throughout® Ejector Pins - Oversize
Nothing beats PCS' Hardened Throughout® Ejector Pins. Utilizing premium quality hot work steel and a propriety heat treat process, PCS Hardened Throughout® pins resist chipping like no other pin can. This makes form work easier, preventing flash and resin waste. When quality is important, choose PCS.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | D Nominal Pin Diameter | Actual Pin Diameter | L Overall Length | H Head Diameter | T Head Thickness | Annealed Head | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|
| P10-10 OS | 9/64 | 0.1451 | 10 | 1/4 | 1/8 | Yes | $4.57 | ||
| P10-14 OS | 9/64 | 0.1451 | 14 | 1/4 | 1/8 | Yes | $5.98 | ||
| P10-6 OS | 9/64 | 0.1451 | 6 | 1/4 | 1/8 | Yes | $4.24 | ||
| P11-10 OS | 5/32 | 0.1607 | 10 | 9/32 | 5/32 | Yes | $4.89 | ||
| P11-14 OS | 5/32 | 0.1607 | 14 | 9/32 | 5/32 | Yes | $5.75 | ||
| P11-6 OS | 5/32 | 0.1607 | 6 | 9/32 | 5/32 | Yes | $4.29 | ||
| P11-8 OS-1 | 5/32 | 0.1567 | 8 | 9/32 | 5/32 | Yes | $11.92 | ||
| P11-8 OS-2 | 5/32 | 0.1577 | 8 | 9/32 | 5/32 | Yes | $11.92 | ||
| P11-8 OS-3 | 5/32 | 0.1587 | 8 | 9/32 | 5/32 | Yes | $11.92 | ||
| P11-8 OS-4 | 5/32 | 0.1597 | 8 | 9/32 | 5/32 | Yes | $11.92 | ||
| P12-10 OS | 11/64 | 0.1764 | 10 | 11/32 | 3/16 | Yes | $5.28 | ||
| P12-14 OS | 11/64 | 0.1764 | 14 | 11/32 | 3/16 | Yes | $5.78 | ||
| P12-6 OS | 11/64 | 0.1764 | 6 | 11/32 | 3/16 | Yes | $4.49 | ||
| P13-10 OS | 3/16 | 0.192 | 10 | 3/8 | 3/16 | Yes | $5.42 | ||
| P13-14 OS | 3/16 | 0.192 | 14 | 3/8 | 3/16 | Yes | $6.25 | ||
| P13-6 OS | 3/16 | 0.192 | 6 | 3/8 | 3/16 | Yes | $4.69 | ||
| P13-8 OS-1 | 3/16 | 0.188 | 8 | 3/8 | 3/16 | Yes | $13.46 | ||
| P13-8 OS-2 | 3/16 | 0.189 | 8 | 3/8 | 3/16 | Yes | $13.46 | ||
| P13-8 OS-3 | 3/16 | 0.19 | 8 | 3/8 | 3/16 | Yes | $13.46 | ||
| P13-8 OS-4 | 3/16 | 0.191 | 8 | 3/8 | 3/16 | Yes | $13.46 | ||
| P14-10 OS | 13/64 | 0.2076 | 10 | 3/8 | 3/16 | Yes | $5.55 | ||
| P14-14 OS | 13/64 | 0.2076 | 14 | 3/8 | 3/16 | Yes | $6.31 | ||
| P14-6 OS | 13/64 | 0.2076 | 6 | 3/8 | 3/16 | Yes | $4.92 | ||
| P15-10 OS | 7/32 | 0.2233 | 10 | 13/32 | 3/16 | Yes | $5.57 | ||
| P15-14 OS | 7/32 | 0.2233 | 14 | 13/32 | 3/16 | Yes | $6.30 | ||
| P15-6 OS | 7/32 | 0.2233 | 6 | 13/32 | 3/16 | Yes | $4.74 | ||
| P16-10 OS | 15/64 | 0.2389 | 10 | 13/32 | 3/16 | Yes | $5.97 | ||
| P16-14 OS | 15/64 | 0.2389 | 14 | 13/32 | 3/16 | Yes | $7.17 | ||
| P17-10 OS | 1/4 | 0.2545 | 10 | 7/16 | 3/16 | Yes | $6.00 | ||
| P17-14 OS | 1/4 | 0.2545 | 14 | 7/16 | 3/16 | Yes | $6.87 | ||
| P17-6 OS | 1/4 | 0.2545 | 6 | 7/16 | 3/16 | Yes | $5.08 | ||
| P17-8 OS-1 | 1/4 | 0.2505 | 8 | 7/16 | 3/16 | Yes | $14.05 | ||
| P17-8 OS-2 | 1/4 | 0.2515 | 8 | 7/16 | 3/16 | Yes | $14.05 | ||
| P17-8 OS-3 | 1/4 | 0.2525 | 8 | 7/16 | 3/16 | Yes | $14.05 | ||
| P17-8 OS-4 | 1/4 | 0.2535 | 8 | 7/16 | 3/16 | Yes | $14.05 | ||
| P17-8 OS-6 | 1/4 | 0.2555 | 8 | 7/16 | 3/16 | Yes | $14.05 | ||
| P17-8 OS-7 | 1/4 | 0.2565 | 8 | 7/16 | 3/16 | Yes | $14.05 | ||
| P17-8 OS-8 | 1/4 | 0.2575 | 8 | 7/16 | 3/16 | Yes | $14.05 | ||
| P18-10 OS | 17/64 | 0.2701 | 10 | 7/16 | 1/4 | Yes | $6.45 | ||
| P18-14 OS | 17/64 | 0.2701 | 14 | 7/16 | 1/4 | Yes | $7.47 | ||
| P18-6 OS | 17/64 | 0.2701 | 6 | 7/16 | 1/4 | Yes | $5.45 | ||
| P19-10 OS | 9/32 | 0.2857 | 10 | 7/16 | 1/4 | Yes | $5.78 | ||
| P19-14 OS | 9/32 | 0.2857 | 14 | 7/16 | 1/4 | Yes | $6.67 | ||
| P19-6 OS | 9/32 | 0.2857 | 6 | 7/16 | 1/4 | Yes | $4.98 | ||
| P20-10 OS | 19/64 | 0.3014 | 10 | 1/2 | 1/4 | Yes | $7.00 | ||
| P20-14 OS | 19/64 | 0.3014 | 14 | 1/2 | 1/4 | Yes | $8.36 | ||
| P21-10 OS | 5/16 | 0.317 | 10 | 1/2 | 1/4 | Yes | $6.31 | ||
| P21-14 OS | 5/16 | 0.317 | 14 | 1/2 | 1/4 | Yes | $7.75 | ||
| P21-6 OS | 5/16 | 0.317 | 6 | 1/2 | 1/4 | Yes | $4.91 | ||
| P22-10 OS | 21/64 | 0.3326 | 10 | 9/16 | 1/4 | Yes | $7.69 | ||
| P22-14 OS | 21/64 | 0.3326 | 14 | 9/16 | 1/4 | Yes | $9.28 | ||
| P22-6 OS | 21/64 | 0.3326 | 6 | 9/16 | 1/4 | Yes | $6.94 | ||
| P23-10 OS | 11/32 | 0.3483 | 10 | 9/16 | 1/4 | Yes | $7.15 | ||
| P23-14 OS | 11/32 | 0.3483 | 14 | 9/16 | 1/4 | Yes | $8.53 | ||
| P23-6 OS | 11/32 | 0.3483 | 6 | 9/16 | 1/4 | Yes | $5.86 | ||
| P24-10 OS | 23/64 | 0.3639 | 10 | 5/8 | 1/4 | Yes | $8.41 | ||
| P24-14 OS | 23/64 | 0.3639 | 14 | 5/8 | 1/4 | Yes | $10.17 | ||
| P25-10 OS | 3/8 | 0.3795 | 10 | 5/8 | 1/4 | Yes | $7.91 | ||
| P25-14 OS | 3/8 | 0.3795 | 14 | 5/8 | 1/4 | Yes | $9.52 | ||
| P25-6 OS | 3/8 | 0.3795 | 6 | 5/8 | 1/4 | Yes | $6.67 | ||
| P26-10 OS | 25/64 | 0.3951 | 10 | 37/64 | 1/4 | Yes | $11.36 | ||
| P26-14 OS | 25/64 | 0.3951 | 14 | 37/64 | 1/4 | Yes | $13.93 | ||
| P27-10 OS | 13/32 | 0.4107 | 10 | 11/16 | 1/4 | Yes | $8.52 | ||
| P27-14 OS | 13/32 | 0.4107 | 14 | 11/16 | 1/4 | Yes | $10.58 | ||
| P27-6 OS | 13/32 | 0.4107 | 6 | 11/16 | 1/4 | Yes | $7.87 | ||
| P28-10 OS | 27/64 | 0.4264 | 10 | 11/16 | 1/4 | Yes | $12.50 | ||
| P28-14 OS | 27/64 | 0.4264 | 14 | 11/16 | 1/4 | Yes | $15.08 | ||
| P29-10 OS | 7/16 | 0.442 | 10 | 11/16 | 1/4 | Yes | $9.24 | ||
| P29-14 OS | 7/16 | 0.442 | 14 | 11/16 | 1/4 | Yes | $12.34 | ||
| P30-10 OS | 29/64 | 0.4576 | 10 | 45/64 | 1/4 | Yes | $12.97 | ||
| P30-14 OS | 29/64 | 0.4576 | 14 | 45/64 | 1/4 | Yes | $16.90 | ||
| P31-10 OS | 15/32 | 0.4733 | 10 | 3/4 | 1/4 | Yes | $10.19 | ||
| P31-14 OS | 15/32 | 0.4733 | 14 | 3/4 | 1/4 | Yes | $13.80 | ||
| P32-10 OS | 31/64 | 0.4889 | 10 | 3/4 | 1/4 | Yes | $14.46 | ||
| P32-14 OS | 31/64 | 0.4889 | 14 | 3/4 | 1/4 | Yes | $17.95 | ||
| P33-10 OS | 1/2 | 0.5045 | 10 | 3/4 | 1/4 | Yes | $11.07 | ||
| P33-14 OS | 1/2 | 0.5045 | 14 | 3/4 | 1/4 | Yes | $14.45 | ||
| P33-6 OS | 1/2 | 0.5045 | 6 | 3/4 | 1/4 | Yes | $8.47 | ||
| P34-10 OS | 17/32 | 0.5357 | 10 | 25/32 | 1/4 | Yes | $19.43 | ||
| P34-14 OS | 17/32 | 0.5357 | 14 | 25/32 | 1/4 | Yes | $25.51 | ||
| P34-6 OS | 17/32 | 0.5357 | 6 | 25/32 | 1/4 | Yes | $16.62 | ||
| P35-10 OS | 9/16 | 0.567 | 10 | 13/16 | 1/4 | Yes | $18.70 | ||
| P35-14 OS | 9/16 | 0.567 | 14 | 13/16 | 1/4 | Yes | $25.56 | ||
| P35-6 OS | 9/16 | 0.567 | 6 | 13/16 | 1/4 | Yes | $15.61 | ||
| P3-6 OS | 1/32 | 0.0357 | 6 | 1/8 | 1/4 | Yes | $11.92 | ||
| P37-10 OS | 5/8 | 0.6295 | 10 | 7/8 | 1/4 | Yes | $22.12 | ||
| P37-14 OS | 5/8 | 0.6295 | 14 | 7/8 | 1/4 | Yes | $28.05 | ||
| P37-6 OS | 5/8 | 0.6295 | 6 | 7/8 | 1/4 | Yes | $17.02 | ||
| P39-10 OS | 11/16 | 0.692 | 10 | 15/16 | 1/4 | Yes | $24.63 | ||
| P39-14 OS | 11/16 | 0.692 | 14 | 15/16 | 1/4 | Yes | $28.20 | ||
| P39-6 OS | 11/16 | 0.692 | 6 | 15/16 | 1/4 | Yes | $18.84 | ||
| P41-10 OS | 3/4 | 0.7545 | 10 | 1 | 1/4 | Yes | $26.97 | ||
| P41-14 OS | 3/4 | 0.7545 | 14 | 1 | 1/4 | Yes | $34.71 | ||
| P41-6 OS | 3/4 | 0.7545 | 6 | 1 | 1/4 | Yes | $20.86 | ||
| P45-14 OS | 7/8 | 0.8795 | 14 | 1 1/8 | 1/4 | Yes | $43.35 | ||
| P45-6 OS | 7/8 | 0.8795 | 6 | 1 1/8 | 1/4 | Yes | $25.10 | ||
| P4-6 OS | 3/64 | 0.0514 | 6 | 5/32 | 1/8 | Yes | $8.00 | ||
| P47-10 OS | 1 | 1.0045 | 10 | 1 1/4 | 1/4 | Yes | $38.69 | ||
| P47-14 OS | 1 | 1.0045 | 14 | 1 1/4 | 1/4 | Yes | $54.32 | ||
| P47-6 OS | 1 | 1.0045 | 6 | 1 1/4 | 1/4 | Yes | $28.72 | ||
| P5-10 OS | 1/16 | 0.067 | 10 | 3/16 | 1/8 | Yes | $7.61 | ||
| P5-6 OS | 1/16 | 0.067 | 6 | 3/16 | 1/8 | Yes | $7.27 | ||
| P6-10 OS | 5/64 | 0.0826 | 10 | 13/64 | 1/8 | Yes | $7.61 | ||
| P6-6 OS | 5/64 | 0.0826 | 6 | 13/64 | 1/8 | Yes | $7.27 | ||
| P7-10 OS | 3/32 | 0.0983 | 10 | 7/32 | 1/8 | Yes | $6.94 | ||
| P7-6 OS | 3/32 | 0.0983 | 6 | 7/32 | 1/8 | Yes | $6.72 | ||
| P8-10 OS | 7/64 | 0.1139 | 10 | 15/64 | 1/8 | Yes | $6.94 | ||
| P8-6 OS | 7/64 | 0.1139 | 6 | 15/64 | 1/8 | Yes | $6.72 | ||
| P9-10 OS | 1/8 | 0.1295 | 10 | 1/4 | 1/8 | Yes | $4.49 | ||
| P9-14 OS | 1/8 | 0.1295 | 14 | 1/4 | 1/8 | Yes | $4.89 | ||
| P9-6 OS | 1/8 | 0.1295 | 6 | 1/4 | 1/8 | Yes | $4.02 | ||
| P9-8 OS-1 | 1/8 | 0.1255 | 8 | 1/4 | 1/8 | Yes | $11.83 | ||
| P9-8 OS-2 | 1/8 | 0.1265 | 8 | 1/4 | 1/8 | Yes | $11.83 | ||
| P9-8 OS-3 | 1/8 | 0.1275 | 8 | 1/4 | 1/8 | Yes | $11.83 | ||
| P9-8 OS-4 | 1/8 | 0.1285 | 8 | 1/4 | 1/8 | Yes | $11.83 |
