- Unit of Measure - Inch
- F.I.T.S. Replacement A & B Plates come standard in P-20 (#3) steel, other plates come in #2 steel

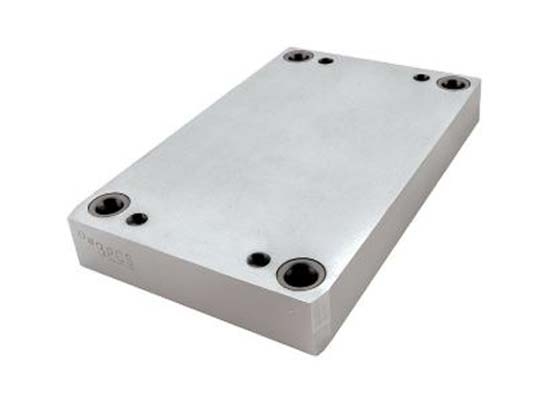

84/90 Replacement Plate
PCS Company offers replacement F.I.T.S. plates for 84/90 series inserts. F.I.T.S. Replacement A & B Plates come standard in P-20 (#3) steel while all other plates come standard in #2 steel.
Item Number | Style | Plate | Plate Thickness | Steel Type | Guided Ejection | CAD Files | Price (USD) | Quantity |
---|---|---|---|---|---|---|---|---|
2EP-8490-04 | Universal | Ejector Plate | 1/2 | #2 | Yes | $83.38 | ||
2EP-8490-04G | Universal | Ejector Plate | 1/2 | #2 | No | $74.39 | ||
2EP-8490-04N | Universal | Ejector Plate | 1/2 | #2 | No | $45.76 | ||
2ER-8490-04 | Universal | Ejector Retainer Plate | 1/2 | #2 | Yes | $84.66 | ||
2ER-8490-04G | Universal | Ejector Plate | 1/2 | #2 | No | $74.39 | ||
2SP-8490-06 | Universal | Support Plate | 3/4 | #2 | Yes | $176.29 | ||
2SP-8490-06G | Universal | Support Plate | 3/4 | #2 | No | $160.94 | ||
2SP-8490-10 | Universal | Support Plate | 1 | #2 | Yes | $190.42 | ||
2SP-8490-10G | Universal | Support Plate | 1 | #2 | No | $175.07 | ||
3AL-8490-07 | Laminated | A Plate | 7/8 | #3 | Yes | $215.00 | ||
3AL-8490-13 | Laminated | A Plate | 1-3/8 | #3 | Yes | $239.98 | ||
3AL-8490-17 | Laminated | A Plate | 1-7/8 | #3 | Yes | $274.48 | ||
3AS-8490-13 | Solid | A Plate | 1-3/8 | #3 | Yes | $280.00 | ||
3AS-8490-17 | Solid | A Plate | 1-7/8 | #3 | Yes | $245.54 | ||
3AS-8490-23 | Solid | A Plate | 2-3/8 | #3 | Yes | $278.27 | ||
3AS-8490-27 | Solid | A Plate | 2-7/8 | #3 | Yes | $324.37 | ||
3AT-8490-12 | T-Style | A Plate | 1-1/4 | #3 | Yes | $244.80 | ||
3AT-8490-14 | T-Style | A Plate | 1-1/2 | #3 | Yes | $280.00 | ||
3AT-8490-17 | T-Style | A Plate | 1-7/8 | #3 | Yes | $304.70 | ||
3BL-8490-07 | Laminated | B Plate | 7/8 | #3 | Yes | $229.15 | ||
3BL-8490-07N | Laminated | B Plate | 7/8 | #3 | Yes | $151.55 | ||
3BL-8490-13 | Laminated | B Plate | 1-3/8 | #3 | Yes | $255.00 | ||
3BL-8490-17 | Laminated | B Plate | 1-7/8 | #3 | Yes | $280.03 | ||
3BS-8490-13 | Solid | B Plate | 1-3/8 | #3 | Yes | $335.00 | ||
3BS-8490-13G | Solid | B Plate | 1-3/8 | #3 | No | $262.13 | ||
3BS-8490-17 | Solid | B Plate | 1-7/8 | #3 | Yes | $299.44 | ||
3BS-8490-17G | Solid | B Plate | 1-7/8 | #3 | No | $284.02 | ||
3BS-8490-23 | Solid | B Plate | 2-3/8 | #3 | Yes | $340.05 | ||
3BS-8490-23G | Solid | B Plate | 2-3/8 | #3 | No | $324.70 | ||
3BS-8490-27 | Solid | B Plate | 2-7/8 | #3 | Yes | $381.70 | ||
3BS-8490-27G | Solid | B Plate | 2-7/8 | #3 | No | $341.85 | ||
3BT-8490-12 | T-Style | B Plate | 1-1/4 | #3 | Yes | $249.82 | ||
3BT-8490-12N | T-Style | B Plate | 1-1/4 | #3 | Yes | $192.48 | ||
3BT-8490-14 | T-Style | B Plate | 1-1/2 | #3 | Yes | $273.44 | ||
3BT-8490-17 | T-Style | B Plate | 1-7/8 | #3 | Yes | $310.75 | ||
3BT-8490-17N | T-Style | B Plate | 1-7/8 | #3 | Yes | $268.08 |
