- UNC threads: UNC 1’’-8 → UNC 2’’ 4.5
- Usable for any kind of lifting operation (straight lifts, with angle, turning, rotating)
- Optimized WLL/dimensions and weight ratio
- Safety factor 4:1 and 5:1
- Individual traceability number
- Operating temperature: -20°C to 200°C / -4°F to 392°F
- Clear markings (CE, WLL, tightening torque)
- Built in anti-tribocorrosion grease, easy rotation under load
- Verification of each thread with calibrated gauge
- 7 year warranty when registered thru Codipro

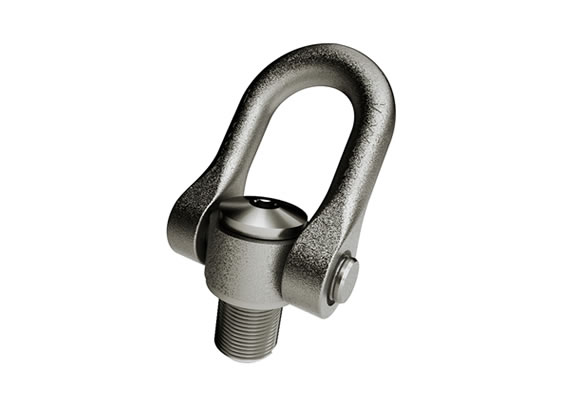

Codipro Stainless Steel DSS Double Swivel Shackle Hoist Ring - Inch
PCS Company offers the Codipro SS.DSS, stainless steel double swivel shackle. The SS.DSS stainless steel lifting ring is a double swivel ring. It is specially designed for simultaneously lifting and rotating loads. Its double swivel action ensures perfect alignment with the sling. The stainless steel ring that provides maximum corrosion resistance and has a rotating range of 360°. Click here to view PCS Company's other mold handling products. Register your Codipro Eyebolt at Coditracer.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | SF 5:1 WLL (lbs) | Thread Size (mm) | Thread Length L1 (mm) | Torque (ft-lb) | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|
| SS.DSSU100 | 6000 | UNC 1’’- 8 | 36 | 125 | $1,627.82 | ||
| SS.DSSU125 | 7500 | UNC 1 1/4" - 7 | 45 | 200 | $1,655.50 | ||
| SS.DSSU138 | 7500 | UNC 1 3/8" - 6 | 54 | 240 | $1,702.51 | ||
| SS.DSSU150 | 11000 | UNC 1 1/2" - 6 | 54 | 240 | $1,760.27 | ||
| SS.DSSU200 | 14000 | UNC 2" - 4.5 | 76 | 450 | $5,841.53 |
