- Used in gib assemblies
- Can be ordered individually
- Aluminum bronze material
- Graphite plugs for greaseless applications
- Made in the U.S.A.

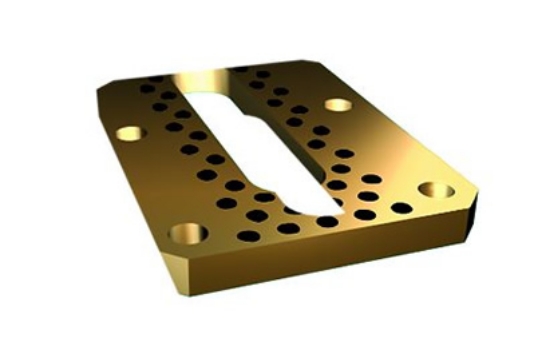

Gib Base Plates
PCS Gib Base Plates are used to make custom cams and slides. These Gib Base Plates have an aluminum bronze construction.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | A | B | C | D | E | H | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|
| 2GAB16GT | 0.69 | 1.31 | 0.38 | 0.26 | 1.5 | 1.625 | $134.87 | ||
| 2GAB24GT | 0.88 | 2.12 | 0.38 | 0.26 | 1.5 | 2.625 | $150.15 | ||
| 2GAB32GT | 1 | 3 | 0.38 | 0.26 | 1.5 | 3.625 | $163.52 | ||
| 3GAB32GT | 1 | 3 | 0.5 | 0.26 | 1.68 | 3.625 | $169.73 | ||
| 3GAB40GT | 1 | 4 | 0.5 | 0.26 | 1.68 | 4.625 | $183.62 | ||
| 4GAB24G | 1 | 2 | 0.5 | 0.32 | 2.44 | 2.625 | $102.44 | ||
| 4GAB32GT | 1 | 3 | 0.5 | 0.32 | 2.44 | 3.625 | $183.73 | ||
| 6GAB40GT | 1 | 4 | 0.5 | 0.32 | 2.75 | 4.625 | $206.14 |
