- Unit of Measure - Inch
- Eliminates galling to leader pins
- Keeps ejector assembly aligned
- Extends the life of ejection components
- Performs better than steel bushings
- Contains internal grease groove
- Designed for Counterbore plates & Ejector Retainer plates

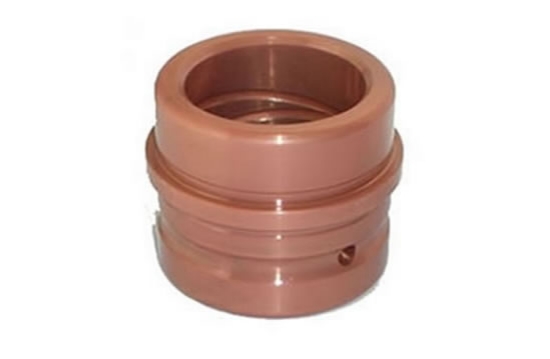

Guided Ejector Bushings - Solid Bronze
PCS Solid Bronze Guided Ejector Bushings are available in nominal diameters ranging from 3/4" to 2". Included internal grease grooves help prevent galling which aids in a smooth operation.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | M I.D. | H Press Fit O.D. | L Overall Length | A Ejector Plate Length | F Rib O.D. | G Lube Hole Location | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|
| BGEB-100 | 1.001 | 1.3755 | 1.75 | 1.12 | 1.552 | 0.62 | $25.18 | ||
| BGEB-125 | 1.251 | 1.6255 | 1.75 | 1.12 | 1.802 | 0.62 | $25.81 | ||
| BGEB-150 | 1.501 | 2.0005 | 1.75 | 1.12 | 2.177 | 0.62 | $25.96 | ||
| BGEB-200 | 2.001 | 2.5005 | 2.25 | 1.62 | 2.687 | 0.8 | $27.25 | ||
| BGEB-500 | 0.501 | 0.7505 | 1.5 | 1 | 0.853 | 0.56 | $21.52 | ||
| BGEB-750 | 0.751 | 1.1255 | 1.5 | 1 | 1.302 | 0.56 | $23.15 | ||
| BGEB-875 | 0.876 | 1.2505 | 1.5 | 1 | 1.427 | 0.56 | $23.79 |
