- Unit of measure - Millimeters
- Available in 3mm to 20mm body diameters
- Body diameter has a m6 tolerance to ensure transition fit
- Compression unit for the infinite locking of the adjustable insert
- Max mold temperature: Ø3 - Ø4mm: 662°F (350°C), Ø5 - 20mm: 932°F (500°C)
- Material: 1.4034 Stainless Steel (~420)
- Material: 1.4034 Stainless Steel (420)
- Hardness: 54 - 58 HRC
Compact Locking Detent Body - Months

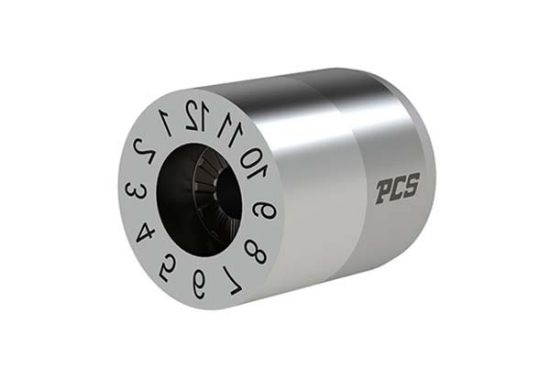

PCS Company's Compact Locking Detent Date Stamp Body allows easy installation. The locking detent feature prevents the center insert from spinning and misaligning the marking during injection molding. Suitable for high-temperature applications, providing reliability and safety in demanding environments. Available in lengths as small as 4mm for applications with limited space. Body Only (DTNP series center insert sold separately).
| Item Number | Engraved Lettering | B Body Diameter | L Body Length | C Center Insert Hole Dia. | Engraving Depth | E Max K.O. Hole Dia. | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|
| DTN03 | 12 Months | 3 | 4 | 1.6 | 0.1 | 1.6 | $101.70 | ||
| DTN04 | 12 Months | 4 | 5 | 2.5 | 0.15 | 2.2 | $101.70 | ||
| DTN05 | 12 Months | 5 | 8 | 3.1 | 0.2 | 3.2 | $101.70 | ||
| DTN06 | 12 Months | 6 | 8 | 3.1 | 0.2 | 3.2 | $101.70 | ||
| DTN08 | 12 Months | 8 | 10 | 4.4 | 0.2 | 4.2 | $101.70 | ||
| DTN10 | 12 Months | 10 | 12 | 5.2 | 0.2 | 5.2 | $101.70 | ||
| DTN12 | 12 Months | 12 | 14 | 6.2 | 0.3 | 6.2 | $101.70 | ||
| DTN16 | 12 Months | 16 | 14 | 8.2 | 0.3 | 8.2 | $101.70 | ||
| DTN20 | 12 Months | 20 | 16 | 11 | 0.3 | 10.2 | $101.70 |
