- Unit of Measure: Inch
- Designed to save time and money
- Prepared and ready for insert production, starter hole included
- Through hardened with ground top and bottom and milled sides
- DHA-WORLD (~H-13), 50-52 HRC
- Higher Charpy Impact than H-13
- Higher fracture toughness than H-13
- S-STAR (420 ESR Stainless Steel), 51-53 HRC
- Excellent corrosion resistance
- Superb mirror finish
- DCMX (Matrix type Cold Work Steel), 59-61HRC
- Vs. M2: Similar wear resistance and 2.5x toughness
- Vs. A2: Higher wear resistance and toughness, 2x fatigue strength
- Vs. D2: 3x toughness, 4x fatigue strength, with slightly reduced toughness

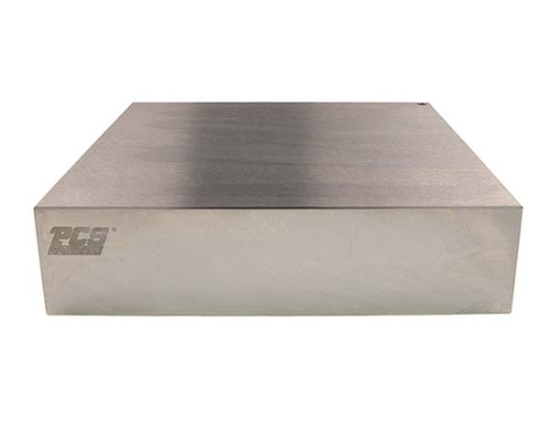

Wire EDM Blanks
PCS Company offers Wire EDM Blanks that are designed to save the toolmaker time and money, while increasing tool room efficiency. EDM Blanks are ground square and parallel to tolerance. They are through hardened, with ground top and bottom, and milled sides. EDM Blanks are offered as DHA-WORLD (H-13), S-STAR (420 ESR Stainless Steel), and DCMX (Matrix type Cold Work Steel).
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | Material | T Thickness | W Width | L Length | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|
| EDM-DCMX-10-80-80 | DCMX | 1.00" | 8.00" | 8.00" | $433.00 | ||
| EDM-DCMX-20-80-80 | DCMX | 2.00" | 8.00" | 8.00" | $658.00 | ||
| EDM-DCMX-30-80-80 | DCMX | 3.00" | 8.00" | 8.00" | $873.00 | ||
| EDM-DHAW-10-80-80 | DHA-WORLD | 1.00" | 8.00" | 8.00" | $376.00 | ||
| EDM-DHAW-20-80-80 | DHA-WORLD | 2.00" | 8.00" | 8.00" | $552.00 | ||
| EDM-DHAW-30-80-80 | DHA-WORLD | 3.00" | 8.00" | 8.00" | $634.00 | ||
| EDM-SSTAR-10-80-80 | S-STAR | 1.00" | 8.00" | 8.00" | $492.00 | ||
| EDM-SSTAR-20-80-80 | S-STAR | 2.00" | 8.00" | 8.00" | $771.00 | ||
| EDM-SSTAR-30-80-80 | S-STAR | 3.00" | 8.00" | 8.00" | $853.00 |
