- Unit of Measure - Inch
- Most popular style of cascade
- Efficient design improves cooling rates
- 12" Brass Tube Included
- 2" Stainless steel pipe nipple included
- Brass Pipe plug included
- Made in the U.S.A.

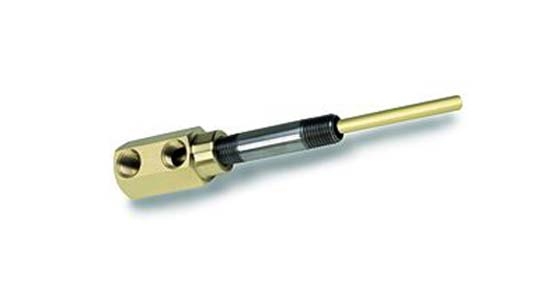

Nipple Type Cascade Assemblies
Nipple Type Cascade Assemblies are an economical solution for many cooling applications. The solid brass heads are precision machined for accurate assembly. Each assembly includes a brass head, 12" brass tube, 2" pipe nipples and brass pipe plug.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | C Outlet Hole Spread | Mold Nipple | L Head Length | E Inlet Hole Location | Hex Key Size | A Pilot Diameter | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|
| C130 | 11/16 | 1/8 | 1-11/32 | 21/64 | 7/8 | 9/32 | $15.52 | ||
| C130A | 1 | 1/8 | 1-21/32 | 21/64 | 7/8 | 9/32 | $15.79 | ||
| C131 | 11/16 | 1/4 | 1-11/32 | 21/64 | 1 | 7/32 | $16.83 | ||
| C131A | 11/16 | 1/4 | 1-11/32 | 21/64 | 1 | 7/32 | $16.79 | ||
| C132 | 1 | 1/4 | 1-21/32 | 21/64 | 1 | 7/16 | $17.16 | ||
| C132A | 1 | 1/4 | 1-21/32 | 21/64 | 1 | 7/16 | $17.08 | ||
| C136A | 1 | 3/8 | 1-11/16 | 11/32 | 1 | 13/32 | $18.98 | ||
| C138A | 1 | 1/2 | 1-13/16 | 13/32 | 1.25 | 9/16 | $31.69 | ||
| C140A | 1/14 | 3/4 | 2-1/4 | 1/2 | 1.5 | 3/4 | $44.09 |
