- Can be installed and removed without disconnecting coolant lines
- Easy adjustment of inner tube at assembly
- Viton seals standard
- High Flow design provides maximum cooling rates
- High flow design for maximum cooling rates
- Assemblies include brass head, 12" high flow piston tube and 2" long stainless pipe nipple
- Unit of Measure - Inch
- Made in the U.S.A.

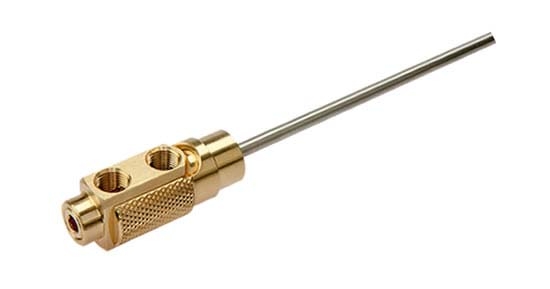

Rear Load Quick Coupler Cascade Assemblies
PCS Company's Rear Load Quick Coupler Cascade Assembly is supplied with a 12" High Flow Piston Tube and brass pipe plug. Quickly remove and install the coupler without disconnecting the water lines. Easy adjustment and maintenance of the inner tube. Available for 200, 300 and 500 series connectors. Uses standard extension plugs.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | In/Out Pipe Size (NPT) | Connector Series | Y End of Connector | X Tube End Ref. | Tube Thread (NPT) | L Length | C | A | O.D. | Tube Access Size (NPT) | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SC121N-4-RL | 1/4 | 500 | .730 | 2.25 | 3/8 | 3.687 | 1-1/4 | 1/3/8 | 1-3/8 | 1/2 | $53.77 | ||
| SC121N-6-RL | 3/8 | 500 | .730 | 2.25 | 3/8 | 3.687 | 1-1/4 | 1/3/8 | 1-3/8 | 1/2 | $53.77 | ||
| SC141N-4-RL | 1/4 | 300 | .590 | 1.89 | 1/8 | 2.937 | 1 | 1-5/32 | 1-1/8 | 1/4 | $45.25 | ||
| SC181N-RL | 1/8 | 200 | .370 | 1.54 | 1/16 | 2.500 | 1 | 31/32 | 7/8 | 1/8 | $33.15 | ||
| SC186N-RL | 1/8 | 200 | .370 | 1.45 | 1/16 | 2.187 | 11/16 | 31/32 | 7/8 | 1/8 | $31.79 |
