- Unit of Measure - Inch
- Reduces heat loss from mold to platen
- Flame resistance: UL Subject 94, V-O
- High hot compressive strength
- Low thermal conductivity
- Oil and moisture resistant
- Heat resistant composite material
- Conserves energy and prolongs machine life
- Made in the U.S.A.
Blank Full Sheets

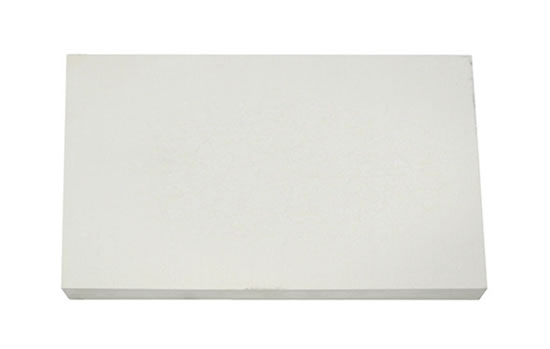

PCS Company blank insulator sheets are made in the U.S.A and come in full sheets ranging from 18” x 36” up to 48” x 96”. Based on your specific processing application, choose either ¼” or ½” thicknesses. These insulator sheets are asbestos free, oil and moisture resistant plus have high hot compressive strength. PCS Company’s insulator sheets are found on injection molds, die casting molds, compression molds, and hot runner systems. For non-standard sizes, please fill out our special insulator sheet quote form..
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | Width | Length | Thicknes | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|
| IN-1836-2 | 18 | 36 | 1/4 | $288.90 | ||
| IN-1836-4 | 18 | 36 | 1/2 | $406.60 | ||
| IN-2436-2 | 24 | 36 | 1/4 | $205.85 | ||
| IN-2436-4 | 24 | 36 | 1/2 | $347.28 | ||
| IN-3636-2 | 36 | 36 | 1/4 | $306.67 | ||
| IN-3636-4 | 36 | 36 | 1/2 | $518.48 | ||
| IN-4896-2 | 48 | 96 | 1/4 | $1,674.55 | ||
| IN-4896-4 | 48 | 96 | 1/2 | $1,829.72 |
