- Material - 7075 Aluminum
- A and B plates supplied with leader pins and bushings
- Ejector plates supplied blank
- Standard A and B plate thickness
- Unit of Measure - Inch
- ER / EP plates are .480" thick each
- Compatible with F.I.T.S.® and MUD® U-Frames
- Leader pin size and location differ from steel F.I.T.S inserts. Contact PCS for details
Solid F.I.T.S.® Insert - Aluminum

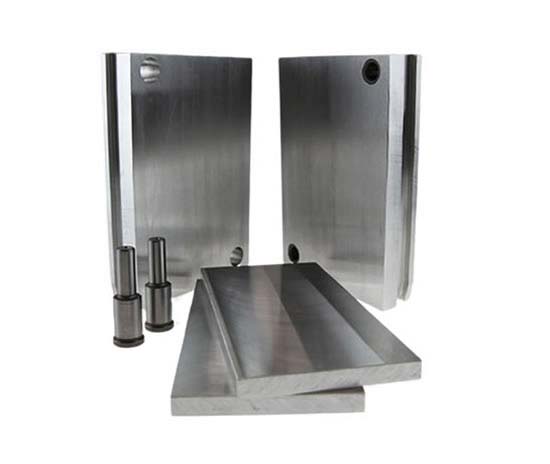

PCS Company offers Solid F.I.T.S. Inserts in Aluminum for ease of machining and faster cycle times compared to P-20 #3 steel. Standard solid inserts range from 08/09 up to 10/14 with plate thicknesses from 1.376" to 2.876". The ejector plates are supplied blank to be machined based on the customers requirements.
Item Number | A Plate Thickness | B Plate Thickness | Series | CAD Files | Price (USD) | Quantity |
---|---|---|---|---|---|---|
FTSA-0809-221 | 1.376 | 1.376 | 08/09 | $824.00 | ||
FTSA-0809-224 | 1.876 | 1.876 | 08/09 | $853.43 | ||
FTSA-0809-227 | 2.376 | 2.376 | 08/09 | $882.86 | ||
FTSA-0809-230 | 2.876 | 2.876 | 08/09 | $912.29 | ||
FTSA-1012-221 | 1.376 | 1.376 | 10/12 | $1,449.36 | ||
FTSA-1012-224 | 1.876 | 1.876 | 10/12 | $1,508.21 | ||
FTSA-1012-227 | 2.376 | 2.376 | 10/12 | $1,611.21 | ||
FTSA-1012-230 | 2.876 | 2.876 | 10/12 | $1,714.21 | ||
FTSA-1014-221 | 1.376 | 1.376 | 10/14 | $1,567.07 | ||
FTSA-1014-224 | 1.876 | 1.876 | 10/14 | $1,640.64 | ||
FTSA-1014-227 | 2.376 | 2.376 | 10/14 | $1,743.64 | ||
FTSA-1014-230 | 2.876 | 2.876 | 10/14 | $1,831.93 | ||
FTSA-8490-221 | 1.376 | 1.376 | 84/90 | $868.14 | ||
FTSA-8490-224 | 1.876 | 1.876 | 84/90 | $912.29 | ||
FTSA-8490-227 | 2.376 | 2.376 | 84/90 | $956.43 | ||
FTSA-8490-230 | 2.876 | 2.876 | 84/90 | $1,000.57 |
