- Unit of Measure: Inch
- Includes 2 Legs , 1 Base Plate , 1 T-Slide (T-Slide Optional)
- Pre-drilled screw and dowel holes
- Base plate through holes allow for easy assembly
- Aluminum bronze material
- Graphite plugs for greaseless applications
- Made in the U.S.A.
Standard Gib Assemblies

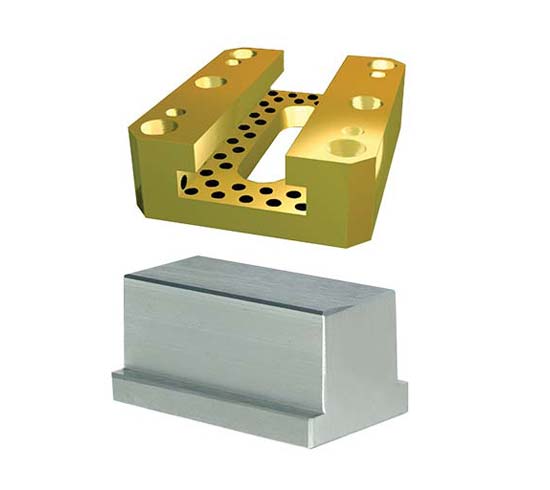

PCS Company's Standard Gib Assemblies come pre-drilled for screw and dowel holes plus the base plate has through holes for easy assembly. The aluminum bronze material along with the self lubricating graphite plugs allow to be used in greaseless applications. All assemblies are supplied with 1 - base plate and 2 - L Gibs. Assemblies with the item number suffix of GTS come with the T-Slide, GT does not come with the T-Slide.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | Includes T-Slide | L Length | W Width | A | B | C | H1 | H2 | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2GA16GT | No | 2 | 2.62 | 0.312 | 0.75 | 1.12 | 1.12 | 1.62 | $470.77 | ||
| 2GA16GTS | Yes | 2 | 2.62 | 0.312 | 0.75 | 1.12 | 1.12 | 1.62 | $511.63 | ||
| 2GA24GT | No | 3 | 2.62 | 0.312 | 0.75 | 1.12 | 1.12 | 1.62 | $501.31 | ||
| 2GA24GTS | Yes | 3 | 2.62 | 0.312 | 0.75 | 1.12 | 1.12 | 1.62 | $542.11 | ||
| 2GA32GT | No | 4 | 3.12 | 0.312 | 0.75 | 1.12 | 1.12 | 1.62 | $536.94 | ||
| 2GA32GTS | Yes | 4 | 3.12 | 0.312 | 0.75 | 1.12 | 1.12 | 1.62 | $575.71 | ||
| 3GA24GT | No | 3 | 3.12 | 0.38 | 0.75 | 1.12 | 1.12 | 1.62 | $506.39 | ||
| 3GA24GTS | Yes | 3 | 3.12 | 0.38 | 0.75 | 1.12 | 1.12 | 1.62 | $549.25 | ||
| 3GA32GT | No | 4 | 3.12 | 0.38 | 0.75 | 1.12 | 1.12 | 1.62 | $547.12 | ||
| 3GA32GTS | Yes | 4 | 3.12 | 0.38 | 0.75 | 1.12 | 1.12 | 1.62 | $592.02 | ||
| 3GA40GT | No | 5 | 3.12 | 0.38 | 0.75 | 1.12 | 1.12 | 1.62 | $580.20 | ||
| 3GA40GTS | Yes | 5 | 3.12 | 0.38 | 0.75 | 1.12 | 1.12 | 1.62 | $623.06 | ||
| 4GA24GT | No | 3 | 4.12 | 0.5 | 0.88 | 1.62 | 1.25 | 1.75 | $544.56 | ||
| 4GA24GTS | Yes | 3 | 4.12 | 0.5 | 0.88 | 1.62 | 1.25 | 1.75 | $595.58 | ||
| 4GA32GT | No | 4 | 4.12 | 0.5 | 0.88 | 1.62 | 1.25 | 1.75 | $577.66 | ||
| 4GA32GTS | Yes | 4 | 4.12 | 0.5 | 0.88 | 1.62 | 1.25 | 1.75 | $626.63 | ||
| 4GA48GT | No | 6 | 4.12 | 0.5 | 0.88 | 1.62 | 1.25 | 1.75 | $664.17 | ||
| 4GA48GTS | Yes | 6 | 4.12 | 0.5 | 0.88 | 1.62 | 1.25 | 1.75 | $719.29 | ||
| 6GA32GTS | Yes | 4 | 4.62 | 0.75 | 1.25 | 1.62 | 1.62 | 2.12 | $697.38 | ||
| 6GA40GTS | Yes | 5 | 4.62 | 0.75 | 1.25 | 1.62 | 1.62 | 2.12 | $730.47 | ||
| 6GA48GT | No | 6 | 4.62 | 0.75 | 1.25 | 1.62 | 1.62 | 2.12 | $725.28 |
