- Unit of Measure - Inch
- Modular construction
- 6061-T6 Aluminum Material
- Anodized for corrosion protection
- Pre-drilled mounting holes
- Viton O-Rings and Tie Rods included
- 90° inlet available
- Maximum operating temperature – 400F/204C
- Made in the U.S.A.

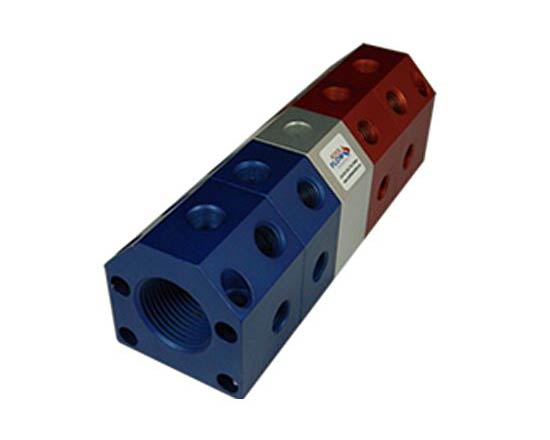

FB4 Port-to-Divide Assemblies
The modular design of the Kool Flow Manifold™ allows for changes to be made at any time according to your needs. FB4 Series manifolds have a 1" inlet hole size with the option of either a 1/4" or 3/8" outlet hole size. The Port to Blank Assembly eliminates the costly end plug, allowing the hot and cold manifolds to be mounted in different locations. Kool Flow Manifolds are also available with a 90° inlet option. Brass Kool Flow Manifolds are available for pH levels above 7.8. Send all Brass Kool Flow Manifold requests for quote to customcomponents@pcs-company.com.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | 90 Degree Inlet | Block Size | Dimension A | Dimension B | Inlet Hole Size | Mounting Hole Size | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|
| FB4-1-10-PD | No | 3.50 x 3.50 | 6.25 | 7 | 2 NPT | 5/16 | $234.00 | ||
| FB4-2-10-PD | No | 3.50 x 3.50 | 10.25 | 11 | 2 NPT | 5/16 | $371.00 | ||
| FB4-3-10-PD | No | 3.50 x 3.50 | 14.25 | 15 | 2 NPT | 5/16 | $508.00 | ||
| FB4-4-10-PD | No | 3.50 x 3.50 | 18.25 | 19 | 2 NPT | 5/16 | $638.00 | ||
| FB4-5-10-PD | No | 3.50 x 3.50 | 22.25 | 23 | 2 NPT | 5/16 | $775.00 | ||
| FB490-1-10-PD | Yes | 3.50 x 3.50 | 6.75 | 7.5 | 2 NPT | 5/16 | $273.33 | ||
| FB490-2-10-PD | Yes | 3.50 x 3.50 | 9.75 | 10.5 | 2 NPT | 5/16 | $428.00 | ||
| FB490-3-10-PD | Yes | 3.50 x 3.50 | 12.75 | 13.5 | 2 NPT | 5/16 | $524.00 | ||
| FB490-4-10-PD | Yes | 3.50 x 3.50 | 15.75 | 16.5 | 2 NPT | 5/16 | $640.00 | ||
| FB490-5-10-PD | Yes | 3.50 x 3.50 | 18.75 | 19.5 | 2 NPT | 5/16 | $761.00 |
