- Temperatures up to 1000°F
- Up to 500K Cycles depending on resin and filler
- Cure time 3-4 hours using hot air
- Works with commodity and engineered grade resins
- Application best when not in the press and on an unheated mold
- Multiple coats are possible
- Softer than HC resulting in faster wear for harder or filled materials
- Limited ability to bond to plated or pretreated surfaces
- Excellent Release
- Made in the U.S.A.

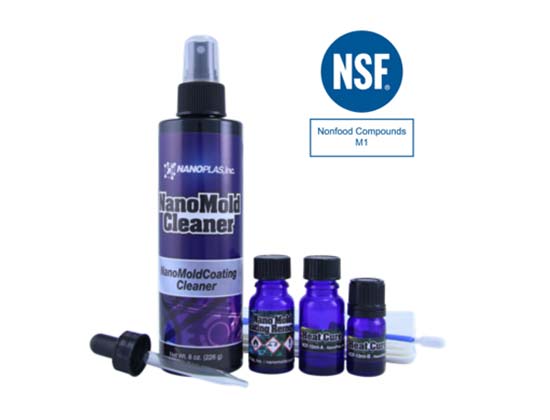

NanoMoldCoating Heat Cured (HCF)
PCS Company offer Nanoplas Heat Cure HCF™ which is an FDA-Compliant mold release coating and is designed to be used in plastic molding applications per FDA 21 CFR section 175.300 Resinous and Polymeric Coatings. It is NSF certified as a Nonfood Compound as category M1 mold release agent. This FDA-compliant coating is scientifically formulated using polymer technology to create a semi-permanent barrier on the surface of a mold which is only 100 nanometers in thickness and which facilitates extraordinary plastic or rubber part release. Heat Cure HCF is a two-part mixture that is applied in the tool room. Heat and air flow activate the polymerization then the coating must be given at least 3 hours to cure.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | Package Size | Temp | FDA | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|
| NANO10HCF | 10 ml | Up to 1000 F | Yes | $428.00 | ||
| NANO15HCF | 15 ml | Up to 1000 F | Yes | $632.00 | ||
| NANO25HCF | 25 ml | Up to 1000 F | Yes | $963.00 | ||
| NANO50HCF | 50 ml | Up to 1000 F | Yes | $1,514.00 |
