- UNC threads: UNC 2’’ 3/4-4 → UNC 4’’-4
- Usable for any kind of lifting operation (straight lifts, with angle, turning, rotating)
- Optimized WLL/dimensions and weight ratio
- Safety factor 4:1 and 5:1
- Individual traceability number
- Operating temperature: -20°C to 200°C / -4°F to 392°F
- Clear markings (CE, WLL, tightening torque)
- Anti-corrosion coating (zinc coating) on bolt and base
- Built in anti-tribocorrosion grease, easy rotation under load
- 7 year warranty when registered thru Codipro

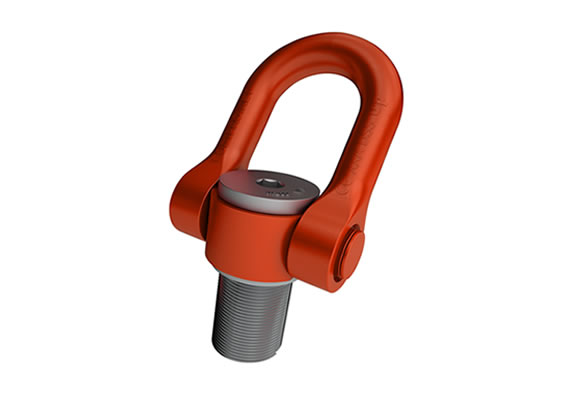

Codipro Mega Double DSS Swivel Shackle - Inch
PCS Company offers the Codipro Mega DSS, universal double swivel shackle. The Mega DSS is a double swivel ring that is specially designed for simultaneously lifting and rotating loads. Its double swivel action ensures perfect alignment with the sling. The ring swivels 180°, but has a rotating range of 360° .Click here to view PCS Company's other mold handling products. Register your Codipro Eyebolt at Coditracer.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | SF 5:1 WLL (lbs) | Thread Size | Thread Length L1 (mm) | Torque (Nm) | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|
| MEGA.DSSU275UP | 60000 | UNC 2 3/4" - 4 | 105 | 520 | $6,491.71 | ||
| MEGA.DSSU300UP | 64000 | UNC 3" -4 | 115 | 520 | $6,644.15 | ||
| MEGA.DSSU325UP | 72000 | UNC 3 1/4" - 4 | 125 | 590 | $6,946.16 | ||
| MEGA.DSSU350UP | 76000 | UNC 3 1/2" - 4 | 135 | 665 | $7,397.73 | ||
| MEGA.DSSU375UP | 80000 | UNC 3 3/4" - 4 | 145 | 740 | $7,550.18 | ||
| MEGA.DSSU400UP | 88000 | UNC 4" - 4 | 150 | 740 | $8,001.75 |
