- Bushings are stocked to dimensions & tolerances shown
- Eliminates galling to leader pins
- Keeps ejector assembly aligned
- Extends the life of ejection components
- Performs better than steel bushings
- Aluminum bronze with graphite plugs
- Perfect for use in Medical or Food grade applications

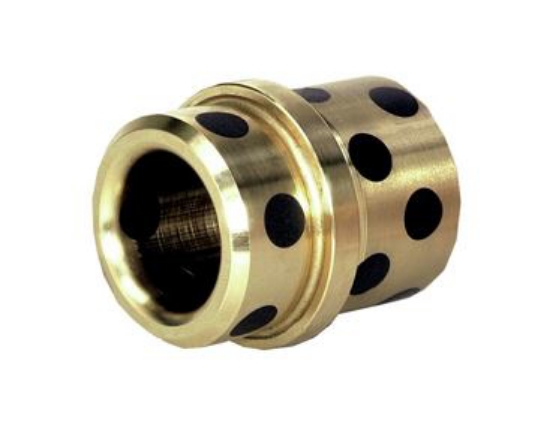

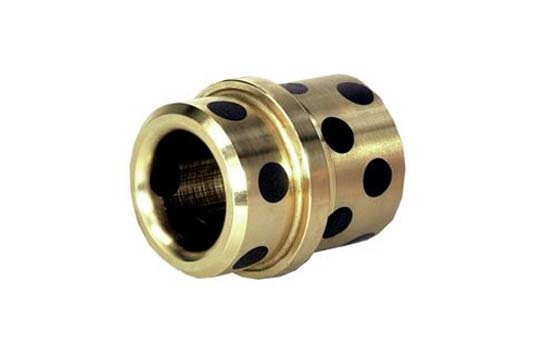

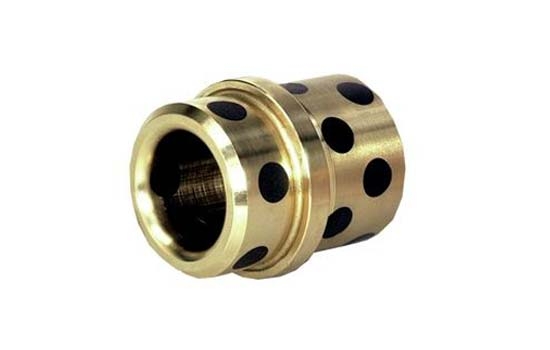

Guided Ejector Bushings - Self-Lubricating
PCS Solid Bronze Self Lubricating Guided Ejector Bushings are available in nominal diameters ranging from 3/4" to 2". The self-lubricating graphite plugs eliminate the need for grease which makes these bushings perfect for food grade, medical and high speed applications.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | H Press Fit O.D. | L Overall Length | M I.D. | Nominal I.D. | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|
| ME-1000 | 1.3755 | 1-3/4 | 1.001 | 1 | $50.75 | ||
| ME-1000L | 1.3755 | 2 | 1.001 | 1 | $54.87 | ||
| ME-1250 | 1.6255 | 1-3/4 | 1.251 | 1-1/4 | $51.11 | ||
| ME-1250L | 1.6255 | 2-1/2 | 1.251 | 1-1/4 | $61.92 | ||
| ME-1500 | 2.0005 | 1-3/4 | 1.501 | 1-1/2 | $58.38 | ||
| ME-1500L | 2.0005 | 2-1/2 | 1.501 | 1-1/2 | $70.44 | ||
| ME-2000 | 2.5005 | 2-1/4 | 2.001 | 2 | $85.71 | ||
| ME-750 | 1.1255 | 1-1/2 | 0.751 | 3/4 | $46.37 | ||
| ME-875 | 1.2505 | 1-1/2 | 0.876 | 7/8 | $47.62 |
