- Unit of Measure: Inch
- Material: Brass
- Threads: BSPT
- Divert the flow of water or coolant
- Separates machined waterlines into multiple channels
- Flush-seal type (7/8" taper) brass pipe plug standard
- 300% more wrenching power from solid brass solderless joint
- BSPT Identification Ring
- Made in U.S.A.

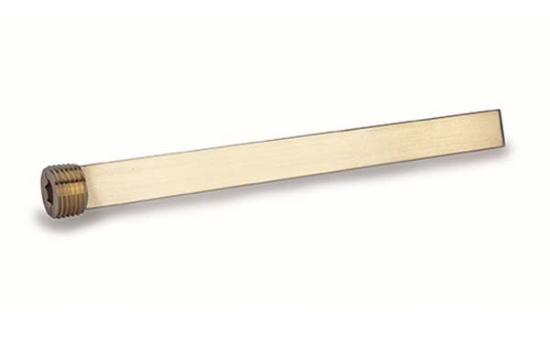

BSPT Straight Brass Baffles
PCS Company's Straight Brass Baffles are designed to divert the flow of water or coolant in the mold. Extra deep socket will not strip out and has 300% more wrenching power from the solid brass solderless joint. Select from standard lengths ranging from 4" to 24". Threads are BSPT.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | Overall Length | Plug Size (BSPT) | Drill Diameter | Blade Width (-.005) | Blade Thickness | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|
| BB-1000-16-BSP | 16 | 1-11 | 1-1/8 | 1.125 | 0.093 | $25.44 | ||
| BB-1000-24-BSP | 24 | 1-11 | 1-1/8 | 1.125 | 0.093 | $29.67 | ||
| BB-125-12-BSP | 12 | 1/8-28 | 5/16 | 0.312 | 0.057 | $6.27 | ||
| BB-125-4-BSP | 4 | 1/8-28 | 5/16 | 0.312 | 0.057 | $4.59 | ||
| BB-125-8-BSP | 8 | 1/8-28 | 5/16 | 0.312 | 0.057 | $5.37 | ||
| BB-250-10-BSP | 10 | 1/4-19 | 27/64 | 0.421 | 0.085 | $6.60 | ||
| BB-250-15-BSP | 15 | 1/4-19 | 27/64 | 0.421 | 0.085 | $8.28 | ||
| BB-250-5-BSP | 5 | 1/4-19 | 27/64 | 0.421 | 0.085 | $5.37 | ||
| BB-375-12-BSP | 12 | 3/8-19 | 9/16 | 0.562 | 0.093 | $9.18 | ||
| BB-375-18-BSP | 18 | 3/8-19 | 9/16 | 0.562 | 0.093 | $11.53 | ||
| BB-375-6-BSP | 6 | 3/8-19 | 9/16 | 0.562 | 0.093 | $7.75 | ||
| BB-500-16-BSP | 16 | 1/2-14 | 11/16 | 0.687 | 0.093 | $11.98 | ||
| BB-500-8-BSP | 8 | 1/2-14 | 11/16 | 0.687 | 0.093 | $8.62 | ||
| BB-750-12-BSP | 12 | 3/4-14 | 29/32 | 0.906 | 0.093 | $14.10 | ||
| BB-750-20-BSP | 20 | 3/4-14 | 29/32 | 0.906 | 0.093 | $19.25 |
