- Unit of Measure - Inch
- Made from solid brass
- For use with high flow tubes only
- Made in the U.S.A.

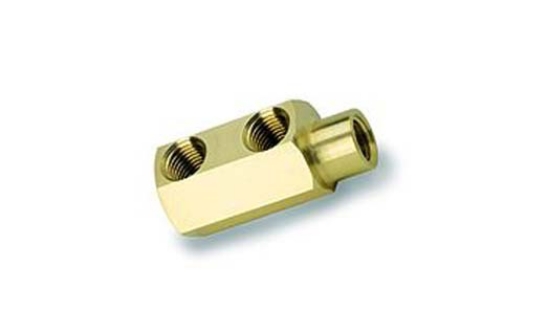

High Flow Replacement Heads
High Flow Assembly Replacement Heads are made from solid brass. The offset design allows for deeper threads to eliminate leaks and flow restrictions. These heads must be used with high flow stainless tubes.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | Close | Head Length | Hex Size | Mold Nipple | Off-Set | Outlet Hole Spread | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|
| HF141H-4 | 11/32 | 2-3/16 | 1 | 1/4 | 5/32 | 1 | $12.10 | ||
| HF146H-4 | 11/32 | 1-7/8 | 1 | 1/4 | 5/32 | 11/16 | $11.82 | ||
| HF16H | 1/4 | 1-1/4 | 5/8 | 1/16 | 3/32 | 1/2 | $10.29 | ||
| HF181H | 5/16 | 1-15/16 | 3/4 | 1/8 | 3/32 | 1 | $11.18 | ||
| HF186H | 5/16 | 1-5/8 | 3/4 | 1/8 | 3/32 | 11/16 | $10.82 | ||
| HF381H-4 | 11/32 | 2-1/4 | 1-1/8 | 3/8 | 1/8 | 1 | $12.61 |
