- Designed to prevent pin rotation
- Surface is nitrided to 65 - 74 Rc
- Core hardness of 40-45 Rc
- Manufactured from premium hot work steel
- Precision ground to 4 - 10 micro-inch finish
- Annealed heads
- All pin sizes with diameter greater than 3/32 are etched for identification

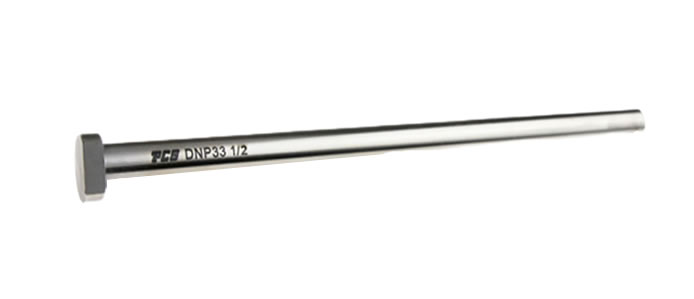

Nitrided Ejector Pins - D-Head
PCS Company's Nitrided D- Head Ejector Pins are manufactured from precision ground hotwork steel. To order D-Head Ejector Pins with the flat ground tangent to the pin diameter, specify “T” after the PCS part number (Ex: DNP9-6T). When quality is important, choose PCS Company's D-Head or Keyed Ejector pins for industry-standard selections.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | D Nominal Pin Diameter | Actual Pin Diameter | Actual Pin Diameter Tolerance | L Overall Length | H Head Diameter | T Head Thickness | Annealed Head | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|
| DNP11-10 | 5/32 | 0.1557 | +.0000 / -.0003 | 10 | 9/32 | 5/32 | Yes | $5.33 | ||
| DNP11-10T | 5/32 | 0.1557 | +.0000 / -.0003 | 10 | 9/32 | 5/32 | Yes | $5.33 | ||
| DNP11-14 | 5/32 | 0.1557 | +.0000 / -.0003 | 14 | 9/32 | 5/32 | Yes | $6.37 | ||
| DNP11-14T | 5/32 | 0.1557 | +.0000 / -.0003 | 14 | 9/32 | 5/32 | Yes | $6.37 | ||
| DNP11-18 | 5/32 | 0.1557 | +.0000 / -.0003 | 18 | 9/32 | 5/32 | Yes | $7.99 | ||
| DNP11-18T | 5/32 | 0.1557 | +.0000 / -.0003 | 18 | 9/32 | 5/32 | Yes | $7.99 | ||
| DNP11-25 | 5/32 | 0.1557 | +.0000 / -.0003 | 25 | 9/32 | 5/32 | Yes | $13.30 | ||
| DNP11-25T | 5/32 | 0.1557 | +.0000 / -.0003 | 25 | 9/32 | 5/32 | Yes | $13.30 | ||
| DNP11-6 | 5/32 | 0.1557 | +.0000 / -.0003 | 6 | 9/32 | 5/32 | Yes | $4.99 | ||
| DNP11-6T | 5/32 | 0.1557 | +.0000 / -.0003 | 6 | 9/32 | 5/32 | Yes | $4.99 | ||
| DNP13-10 | 3/16 | 0.187 | +.0000 / -.0003 | 10 | 3/8 | 3/16 | Yes | $5.52 | ||
| DNP13-10T | 3/16 | 0.187 | +.0000 / -.0003 | 10 | 3/8 | 3/16 | Yes | $5.52 | ||
| DNP13-14 | 3/16 | 0.187 | +.0000 / -.0003 | 14 | 3/8 | 3/16 | Yes | $6.37 | ||
| DNP13-14T | 3/16 | 0.187 | +.0000 / -.0003 | 14 | 3/8 | 3/16 | Yes | $6.37 | ||
| DNP13-18 | 3/16 | 0.187 | +.0000 / -.0003 | 18 | 3/8 | 3/16 | Yes | $8.27 | ||
| DNP13-18T | 3/16 | 0.187 | +.0000 / -.0003 | 18 | 3/8 | 3/16 | Yes | $8.27 | ||
| DNP13-25 | 3/16 | 0.187 | +.0000 / -.0003 | 25 | 3/8 | 3/16 | Yes | $10.82 | ||
| DNP13-25T | 3/16 | 0.187 | +.0000 / -.0003 | 25 | 3/8 | 3/16 | Yes | $10.82 | ||
| DNP13-6 | 3/16 | 0.187 | +.0000 / -.0003 | 6 | 3/8 | 3/16 | Yes | $5.06 | ||
| DNP13-6T | 3/16 | 0.187 | +.0000 / -.0003 | 6 | 3/8 | 3/16 | Yes | $5.06 | ||
| DNP15-10 | 7/32 | 0.2183 | +.0000 / -.0003 | 10 | 13/32 | 3/16 | Yes | $6.48 | ||
| DNP15-10T | 7/32 | 0.2183 | +.0000 / -.0003 | 10 | 13/32 | 3/16 | Yes | $6.48 | ||
| DNP15-25 | 7/32 | 0.2183 | +.0000 / -.0003 | 25 | 13/32 | 3/16 | Yes | $7.30 | ||
| DNP17-10 | 1/4 | 0.2495 | +.0000 / -.0003 | 10 | 7/16 | 3/16 | Yes | $7.37 | ||
| DNP17-10 OS | 1/4 | 0.2495 | +.0000 / -.0003 | 10 | 7/16 | 3/16 | Yes | $10.73 | ||
| DNP17-10T | 1/4 | 0.2495 | +.0000 / -.0003 | 10 | 7/16 | 3/16 | Yes | $7.37 | ||
| DNP17-14 | 1/4 | 0.2495 | +.0000 / -.0003 | 14 | 7/16 | 3/16 | Yes | $8.35 | ||
| DNP17-14T | 1/4 | 0.2495 | +.0000 / -.0003 | 14 | 7/16 | 3/16 | Yes | $8.35 | ||
| DNP17-18 | 1/4 | 0.2495 | +.0000 / -.0003 | 18 | 7/16 | 3/16 | Yes | $9.95 | ||
| DNP17-18T | 1/4 | 0.2495 | +.0000 / -.0003 | 18 | 7/16 | 3/16 | Yes | $9.95 | ||
| DNP17-25 | 1/4 | 0.2495 | +.0000 / -.0003 | 25 | 7/16 | 3/16 | Yes | $12.86 | ||
| DNP17-25T | 1/4 | 0.2495 | +.0000 / -.0003 | 25 | 7/16 | 3/16 | Yes | $12.86 | ||
| DNP17-6 | 1/4 | 0.2495 | +.0000 / -.0003 | 6 | 7/16 | 3/16 | Yes | $6.48 | ||
| DNP17-6T | 1/4 | 0.2495 | +.0000 / -.0003 | 6 | 7/16 | 3/16 | Yes | $6.48 | ||
| DNP21-10 | 5/16 | 0.312 | +.0000 / -.0003 | 10 | 1/2 | 3/16 | Yes | $8.64 | ||
| DNP21-10T | 5/16 | 0.312 | +.0000 / -.0003 | 10 | 1/2 | 3/16 | Yes | $8.64 | ||
| DNP21-14 | 5/16 | 0.312 | +.0000 / -.0003 | 14 | 1/2 | 3/16 | Yes | $9.99 | ||
| DNP21-14T | 5/16 | 0.312 | +.0000 / -.0003 | 14 | 1/2 | 3/16 | Yes | $9.99 | ||
| DNP21-18 | 5/16 | 0.312 | +.0000 / -.0003 | 18 | 1/2 | 3/16 | Yes | $11.87 | ||
| DNP21-18T | 5/16 | 0.312 | +.0000 / -.0003 | 18 | 1/2 | 3/16 | Yes | $11.87 | ||
| DNP21-25 | 5/16 | 0.312 | +.0000 / -.0003 | 25 | 1/2 | 3/16 | Yes | $15.17 | ||
| DNP21-25T | 5/16 | 0.312 | +.0000 / -.0003 | 25 | 1/2 | 3/16 | Yes | $15.17 | ||
| DNP21-6 | 5/16 | 0.312 | +.0000 / -.0003 | 6 | 1/2 | 3/16 | Yes | $7.41 | ||
| DNP21-6T | 5/16 | 0.312 | +.0000 / -.0003 | 6 | 1/2 | 3/16 | Yes | $7.41 | ||
| DNP25-10 | 3/8 | 0.3745 | +.0000 / -.0003 | 10 | 5/8 | 1/4 | Yes | $10.19 | ||
| DNP25-10T | 3/8 | 0.3745 | +.0000 / -.0003 | 10 | 5/8 | 1/4 | Yes | $10.19 | ||
| DNP25-14 | 3/8 | 0.3745 | +.0000 / -.0003 | 14 | 5/8 | 1/4 | Yes | $11.87 | ||
| DNP25-14T | 3/8 | 0.3745 | +.0000 / -.0003 | 14 | 5/8 | 1/4 | Yes | $11.87 | ||
| DNP25-18 | 3/8 | 0.3745 | +.0000 / -.0003 | 18 | 5/8 | 1/4 | Yes | $14.58 | ||
| DNP25-18T | 3/8 | 0.3745 | +.0000 / -.0003 | 18 | 5/8 | 1/4 | Yes | $14.58 | ||
| DNP25-25 | 3/8 | 0.3745 | +.0000 / -.0003 | 25 | 5/8 | 1/4 | Yes | $19.36 | ||
| DNP25-25T | 3/8 | 0.3745 | +.0000 / -.0003 | 25 | 5/8 | 1/4 | Yes | $19.36 | ||
| DNP25-36 | 3/8 | 0.3745 | +.0000 / -.0003 | 36 | 5/8 | 1/4 | Yes | $44.63 | ||
| DNP25-6 | 3/8 | 0.3745 | +.0000 / -.0003 | 6 | 5/8 | 1/4 | Yes | $8.28 | ||
| DNP25-6T | 3/8 | 0.3745 | +.0000 / -.0003 | 6 | 5/8 | 1/4 | Yes | $8.28 | ||
| DNP29-14 | 7/16 | 0.437 | +.0000 / -.0003 | 14 | 11/16 | 1/4 | Yes | $12.65 | ||
| DNP29-14T | 7/16 | 0.437 | +.0000 / -.0003 | 14 | 11/16 | 1/4 | Yes | $12.65 | ||
| DNP29-18 | 7/16 | 0.437 | +.0000 / -.0003 | 18 | 11/16 | 1/4 | Yes | $16.02 | ||
| DNP29-18T | 7/16 | 0.437 | +.0000 / -.0003 | 18 | 11/16 | 1/4 | Yes | $16.02 | ||
| DNP29-6 | 7/16 | 0.437 | +.0000 / -.0003 | 6 | 11/16 | 1/4 | Yes | $8.65 | ||
| DNP29-6T | 7/16 | 0.437 | +.0000 / -.0003 | 6 | 11/16 | 1/4 | Yes | $8.65 | ||
| DNP33-10 | 1/2 | 0.4995 | +.0000 / -.0003 | 10 | 3/4 | 1/4 | Yes | $14.81 | ||
| DNP33-10T | 1/2 | 0.4995 | +.0000 / -.0003 | 10 | 3/4 | 1/4 | Yes | $14.81 | ||
| DNP33-14 | 1/2 | 0.4995 | +.0000 / -.0003 | 14 | 3/4 | 1/4 | Yes | $17.98 | ||
| DNP33-14T | 1/2 | 0.4995 | +.0000 / -.0003 | 14 | 3/4 | 1/4 | Yes | $17.98 | ||
| DNP33-18 | 1/2 | 0.4995 | +.0000 / -.0003 | 18 | 3/4 | 1/4 | Yes | $22.30 | ||
| DNP33-18T | 1/2 | 0.4995 | +.0000 / -.0003 | 18 | 3/4 | 1/4 | Yes | $22.30 | ||
| DNP33-25 | 1/2 | 0.4995 | +.0000 / -.0003 | 25 | 3/4 | 1/4 | Yes | $31.06 | ||
| DNP33-25T | 1/2 | 0.4995 | +.0000 / -.0003 | 25 | 3/4 | 1/4 | Yes | $31.06 | ||
| DNP33-6 | 1/2 | 0.4995 | +.0000 / -.0003 | 6 | 3/4 | 1/4 | Yes | $12.03 | ||
| DNP33-6T | 1/2 | 0.4995 | +.0000 / -.0003 | 6 | 3/4 | 1/4 | Yes | $12.03 | ||
| DNP35-14 | 9/16 | 0.562 | +.0000 / -.0005 | 14 | 13/16 | 1/4 | Yes | $18.27 | ||
| DNP35-14T | 9/16 | 0.562 | +.0000 / -.0005 | 14 | 13/16 | 1/4 | Yes | $18.27 | ||
| DNP35-25 | 9/16 | 0.562 | +.0000 / -.0005 | 25 | 13/16 | 1/4 | Yes | $34.86 | ||
| DNP35-6 | 9/16 | 0.562 | +.0000 / -.0005 | 6 | 13/16 | 1/4 | Yes | $11.05 | ||
| DNP35-6T | 9/16 | 0.562 | +.0000 / -.0005 | 6 | 13/16 | 1/4 | Yes | $11.05 | ||
| DNP37-10 | 5/8 | 0.6245 | +.0000 / -.0005 | 10 | 7/8 | 1/4 | Yes | $20.78 | ||
| DNP37-10T | 5/8 | 0.6245 | +.0000 / -.0005 | 10 | 7/8 | 1/4 | Yes | $19.30 | ||
| DNP37-14 | 5/8 | 0.6245 | +.0000 / -.0005 | 14 | 7/8 | 1/4 | Yes | $23.56 | ||
| DNP37-14T | 5/8 | 0.6245 | +.0000 / -.0005 | 14 | 7/8 | 1/4 | Yes | $23.56 | ||
| DNP37-18 | 5/8 | 0.6245 | +.0000 / -.0005 | 18 | 7/8 | 1/4 | Yes | $28.85 | ||
| DNP37-18T | 5/8 | 0.6245 | +.0000 / -.0005 | 18 | 7/8 | 1/4 | Yes | $28.85 | ||
| DNP37-25 | 5/8 | 0.6245 | +.0000 / -.0005 | 25 | 7/8 | 1/4 | Yes | $39.03 | ||
| DNP37-25T | 5/8 | 0.6245 | +.0000 / -.0005 | 25 | 7/8 | 1/4 | Yes | $39.03 | ||
| DNP37-36 | 5/8 | 0.6245 | +.0000 / -.0005 | 36 | 7/8 | 1/4 | Yes | $67.62 | ||
| DNP37-6 | 5/8 | 0.6245 | +.0000 / -.0005 | 6 | 7/8 | 1/4 | Yes | $15.12 | ||
| DNP37-6T | 5/8 | 0.6245 | +.0000 / -.0005 | 6 | 7/8 | 1/4 | Yes | $15.12 | ||
| DNP41-10 | 3/4 | 0.7495 | +.0000 / -.0005 | 10 | 1 | 1/4 | Yes | $24.71 | ||
| DNP41-10T | 3/4 | 0.7495 | +.0000 / -.0005 | 10 | 1 | 1/4 | Yes | $24.71 | ||
| DNP41-14 | 3/4 | 0.7495 | +.0000 / -.0005 | 14 | 1 | 1/4 | Yes | $30.70 | ||
| DNP41-14T | 3/4 | 0.7495 | +.0000 / -.0005 | 14 | 1 | 1/4 | Yes | $30.70 | ||
| DNP41-18 | 3/4 | 0.7495 | +.0000 / -.0005 | 18 | 1 | 1/4 | Yes | $37.96 | ||
| DNP41-18T | 3/4 | 0.7495 | +.0000 / -.0005 | 18 | 1 | 1/4 | Yes | $37.96 | ||
| DNP41-25 | 3/4 | 0.7495 | +.0000 / -.0005 | 25 | 1 | 1/4 | Yes | $50.43 | ||
| DNP41-25T | 3/4 | 0.7495 | +.0000 / -.0005 | 25 | 1 | 1/4 | Yes | $50.43 | ||
| DNP41-6 | 3/4 | 0.7495 | +.0000 / -.0005 | 6 | 1 | 1/4 | Yes | $19.43 | ||
| DNP41-6T | 3/4 | 0.7495 | +.0000 / -.0005 | 6 | 1 | 1/4 | Yes | $19.43 | ||
| DNP45-14 | 7/8 | 0.8745 | +.0000 / -.0005 | 14 | 1.125 | 1/4 | Yes | $38.17 | ||
| DNP45-14T | 7/8 | 0.8745 | +.0000 / -.0005 | 14 | 1.125 | 1/4 | Yes | $38.17 | ||
| DNP45-18 | 7/8 | 0.8745 | +.0000 / -.0005 | 18 | 1.125 | 1/4 | Yes | $47.58 | ||
| DNP45-18T | 7/8 | 0.8745 | +.0000 / -.0005 | 18 | 1.125 | 1/4 | Yes | $47.58 | ||
| DNP47-10 | 1 | 0.9995 | +.0000 / -.0005 | 10 | 1.25 | 1/4 | Yes | $38.29 | ||
| DNP47-10T | 1 | 0.9995 | +.0000 / -.0005 | 10 | 1.25 | 1/4 | Yes | $38.29 | ||
| DNP47-14 | 1 | 0.9995 | +.0000 / -.0005 | 14 | 1.25 | 1/4 | Yes | $47.33 | ||
| DNP47-14T | 1 | 0.9995 | +.0000 / -.0005 | 14 | 1.25 | 1/4 | Yes | $47.33 | ||
| DNP47-18 | 1 | 0.9995 | +.0000 / -.0005 | 18 | 1.25 | 1/4 | Yes | $56.92 | ||
| DNP47-18T | 1 | 0.9995 | +.0000 / -.0005 | 18 | 1.25 | 1/4 | Yes | $56.92 | ||
| DNP47-25 | 1 | 0.9995 | +.0000 / -.0005 | 25 | 1.25 | 1/4 | Yes | $73.43 | ||
| DNP47-25T | 1 | 0.9995 | +.0000 / -.0005 | 25 | 1.25 | 1/4 | Yes | $73.43 | ||
| DNP47-6 | 1 | 0.9995 | +.0000 / -.0005 | 6 | 1.25 | 1/4 | Yes | $28.68 | ||
| DNP47-6T | 1 | 0.9995 | +.0000 / -.0005 | 6 | 1.25 | 1/4 | Yes | $28.68 | ||
| DNP9-10 | 1/8 | 0.1245 | +.0000 / -.0003 | 10 | 1/4 | 1/8 | Yes | $5.21 | ||
| DNP9-10T | 1/8 | 0.1245 | +.0000 / -.0003 | 10 | 1/4 | 1/8 | Yes | $5.21 | ||
| DNP9-14 | 1/8 | 0.1245 | +.0000 / -.0003 | 14 | 1/4 | 1/8 | Yes | $5.68 | ||
| DNP9-14T | 1/8 | 0.1245 | +.0000 / -.0003 | 14 | 1/4 | 1/8 | Yes | $5.68 | ||
| DNP9-18 | 1/8 | 0.1245 | +.0000 / -.0003 | 18 | 1/4 | 1/8 | Yes | $6.62 | ||
| DNP9-25 | 1/8 | 0.1245 | +.0000 / -.0003 | 25 | 1/4 | 1/8 | Yes | $14.68 | ||
| DNP9-6 | 1/8 | 0.1245 | +.0000 / -.0003 | 6 | 1/4 | 1/8 | Yes | $4.85 | ||
| DNP9-6T | 1/8 | 0.1245 | +.0000 / -.0003 | 6 | 1/4 | 1/8 | Yes | $4.85 |
