- Heavy Duty Drop Forged
- 1030 Carbon Steel
- Three Styles to choose from: Plain Pattern, Shoulder Pattern & Metric Shoulder Pattern
- Self-Colored
- Manufactured to ASME B18.15
- Tested to ASTM A489 specifications
- Made in USA

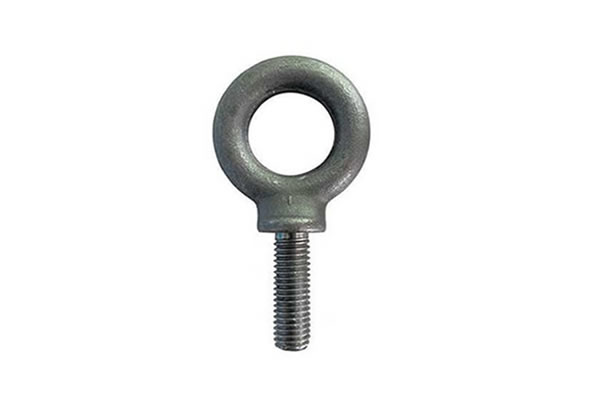

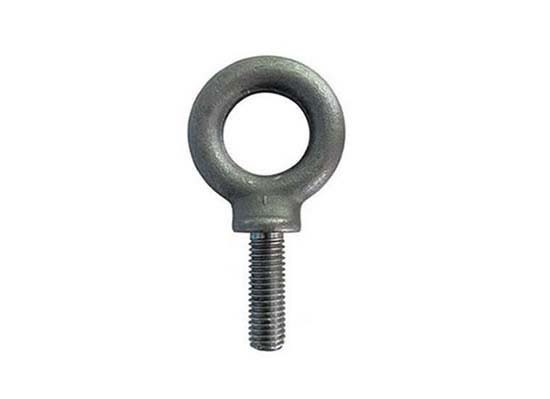

Forged Eyebolts
PCS Company's Forged Eyebolts are Drop Forged Carbon Steel and fully threaded. Three styles to choose from; Plain Pattern, Shoulder Pattern and Metric Shoulder Pattern. Eyebolts are manufactured to ASME B18.15 and tested to ASTM A489 specifications. These entry level low cost mold handling eyebolts allow you to keep one on very mold. Easy to use with either a nylon sling or steel chain lifting sling. WARNING: Load ratings are for only for vertical lifting. Load ratings drop 25% when used at 45°. Do not use at an angle greater than 45°. Do not use and discard if any eyebolt is bent, twisted or visibally damaged.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | Inch or Metric | Shoulder Option | A Thread Diameter | B Shank Length | C Eye ID | D Eye OD | Overall Length | Straight Lift Rated Capacity | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 13631 | Inch | Plain | 3/8-16 | 1-1/4" | 0.94" | 1.69" | 2.81" | 1300 LBS | $7.06 | ||
| 13638 | Inch | Plain | 7/16-14 | 1-3/8" | 1.0" | 1.81" | 3.06" | 1800 LBS | $4.80 | ||
| 13641 | Inch | Plain | 1/2-13 | 1-1/2" | 1.12" | 2.12" | 3.50" | 2400 LBS | $7.52 | ||
| 13661 | Inch | Plain | 5/8-11 | 1-3/4" | 1.31" | 2.56" | 4.19" | 4000 LBS | $11.92 | ||
| 13672 | Inch | Plain | 3/4-10 | 2" | 1.44" | 2.81" | 4.69" | 5000 LBS | $12.00 | ||
| 13702 | Inch | Plain | 1-8 | 2-1/2" | 1.69" | 3.56" | 5.94" | 9000 LBS | $25.39 | ||
| 13712 | Inch | Plain | 1-1/8-7 | 2-3/4" | 1.94" | 4.06" | 6.69" | 12000 LBS | $20.44 | ||
| 13723 | Inch | Plain | 1-1/4 X 7 | 3" | 2.12" | 4.44" | 7.31" | 15000 LBS | $46.38 | ||
| 13790 | Inch | Plain | 2-1/2 X 4 | 5" | 3.81" | 8.50" | 13.19 | 56000 LBS | $603.30 | ||
| 14611 | Inch | Shoulder | 1/4 X 20 | 1" | .81" | 1.19" | 2.22" | 500 LBS | $3.15 | ||
| 14621 | Inch | Shoulder | 5/16 X 18 | 1-1/8" | .94" | 1.44" | 2.66" | 900 LBS | $6.93 | ||
| 14631 | Inch | Shoulder | 3/8-16 | 1-1/4" | 1.06" | 1.69" | 3.09" | 1300 LBS | $7.06 | ||
| 14638 | Inch | Shoulder | 7/16-14 | 1-3/8" | 1.12" | 1.81" | 3.41" | 1800 LBS | $4.81 | ||
| 14638M | Metric | Shoulder | M10 X 1.5 | 35 mm | 27 mm | 46 mm | 3.09" | 1628 LBS | $11.97 | ||
| 14641 | Inch | Shoulder | 1/2-13 | 1-1/2" | 1.25" | 2.12" | 3.81" | 2400 LBS | $7.52 | ||
| 14641M | Metric | Shoulder | M12 X 1.75 | 38 mm | 30 mm | 54 mm | 3.81" | 2266 LBS | $8.14 | ||
| 14661 | Inch | Shoulder | 5/8-11 | 1-3/4" | 1.44" | 2.56" | 4.56" | 4000 LBS | $11.92 | ||
| 14661M | Metric | Shoulder | M14 X 2 | 41.1 mm | 33 mm | 58 mm | 3.81" | 3520 LBS | $15.48 | ||
| 14662M | Metric | Shoulder | M16 X 2 | 44.5 mm | 35 mm | 65 mm | 4.56" | 3520 LBS | $17.41 | ||
| 14672 | Inch | Shoulder | 3/4-10 | 2" | 1.56" | 2.81" | 5.06" | 5000 LBS | $15.40 | ||
| 14672M | Metric | Shoulder | M18 X 2.5 | 51 mm | 38 mm | 71.5 mm | 4.56" | 4708 LBS | $13.34 | ||
| 14682 | Inch | Shoulder | 7/8-9 | 2-1/4" | 1.69" | 3.19" | 5.75" | 7000 LBS | $12.75 | ||
| 14682M | Metric | Shoulder | M20 X 2.5 | 57 mm | 41 mm | 81 mm | 5.06" | 6292 LBS | $29.59 | ||
| 14702 | Inch | Shoulder | 1-8 | 2-1/2" | 1.81" | 3.56" | 6.44" | 9000 LBS | $25.39 | ||
| 14702M | Metric | Shoulder | M24 X 3 | 65.5 mm | 46 mm | 90.4 mm | 6.44" | 8470 LBS | $19.28 | ||
| 14712 | Inch | Shoulder | 1-1/8-7 | 2-3/4" | 2.06" | 4.06" | 7.31" | 12000 LBS | $20.44 | ||
| 14723 | Inch | Shoulder | 1-1/4-7 | 3" | 2.25" | 4.44" | 8.0" | 15000 LBS | $46.38 |
