- Unit of Measure - Inch
- F.I.T.S. Replacement A & B Plates come standard in P-20 (#3) steel, other plates come in #2 steel

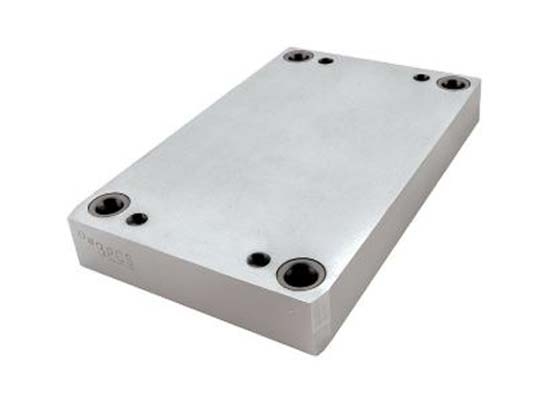

08/09 Replacement Plate
PCS Company offers replacement plates for 08/09 series inserts. F.I.T.S. Replacement A & B Plates come standard in P-20 (#3) steel while all other plates come standard in #2 steel.
CAD files for F.I.T.S. Plates can be found through our CAD Library.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | Style | Plate | Plate Thickness | Steel Type | Guided Ejection | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|
| 2EP-0809-04 | Universal | Ejector Plate | 1/2 | #2 | Yes | $73.16 | ||
| 2EP-0809-04G | Universal | Ejector Plate | 1/2 | #2 | No | $56.91 | ||
| 2EP-0809-04N | Universal | Ejector Plate | 1/2 | #2 | No | $41.81 | ||
| 2ER-0809-04 | Universal | Ejector Retainer Plate | 1/2 | #2 | Yes | $76.63 | ||
| 2ER-0809-04G | Universal | Ejector Plate | 1/2 | #2 | No | $56.91 | ||
| 2ER-0809-04X | Universal | Ejector Plate | 1/2 | #2 | Yes | $132.39 | ||
| 2SP-0809-06 | Universal | Support Plate | 3/4 | #2 | Yes | $146.33 | ||
| 2SP-0809-06G | Universal | Support Plate | 3/4 | #2 | No | $121.93 | ||
| 2SP-0809-06X | Universal | Support Plate | 3/4 | #2 | Yes | $158.64 | ||
| 3AL-0809-11 | Laminated | A Plate | 1-1/8 | #3 | Yes | $184.65 | ||
| 3AL-0809-11X | Laminated Plus | A Plate | 1-1/8 | #3 | Yes | $205.53 | ||
| 3AL-0809-15 | Laminated | A Plate | 1-5/8 | #3 | Yes | $219.49 | ||
| 3AL-0809-15X | Laminated Plus | A Plate | 1-5/8 | #3 | Yes | $235.33 | ||
| 3AL-0809-21 | Laminated | A Plate | 2-1/8 | #3 | Yes | $250.84 | ||
| 3AL-0809-21X | Laminated Plus | A Plate | 2-1/8 | #3 | Yes | $262.13 | ||
| 3AS-0809-13 | Solid | A Plate | 1-3/8 | #3 | Yes | $195.11 | ||
| 3AS-0809-13X | Solid Plus | A Plate | 1-3/8 | #3 | Yes | $203.11 | ||
| 3AS-0809-17 | Solid | A Plate | 1-7/8 | #3 | Yes | $229.94 | ||
| 3AS-0809-17X | Solid Plus | A Plate | 1-7/8 | #3 | Yes | $232.99 | ||
| 3AS-0809-23 | Solid | A Plate | 2-3/8 | #3 | Yes | $264.78 | ||
| 3AS-0809-23X | Solid Plus | A Plate | 2-3/8 | #3 | Yes | $274.07 | ||
| 3AS-0809-27 | Solid | A Plate | 2-7/8 | #3 | Yes | $285.40 | ||
| 3AS-0809-27X | Solid Plus | A Plate | 2-7/8 | #3 | Yes | $361.94 | ||
| 3AT-0809-10 | T-Style | A Plate | 1 | #3 | Yes | $205.56 | ||
| 3AT-0809-10X | T-Style Plus | A Plate | 1 | #3 | Yes | $223.41 | ||
| 3AT-0809-12 | T-Style | A Plate | 1-1/4 | #3 | Yes | $233.43 | ||
| 3AT-0809-12X | T-Style Plus | A Plate | 1-1/4 | #3 | Yes | $247.22 | ||
| 3AT-0809-14 | T-Style | A Plate | 1-1/2 | #3 | Yes | $257.79 | ||
| 3AT-0809-14X | T-Style Plus | A Plate | 1-1/2 | #3 | Yes | $268.10 | ||
| 3AT-0809-17 | T-Style | A Plate | 1-7/8 | #3 | Yes | $296.13 | ||
| 3AT-0809-17X | T-Style Plus | A Plate | 1-7/8 | #3 | Yes | $300.84 | ||
| 3BL-0809-11 | Laminated | B Plate | 1-1/8 | #3 | Yes | $184.65 | ||
| 3BL-0809-11X | Laminated Plus | B Plate | 1-1/8 | #3 | Yes | $253.71 | ||
| 3BL-0809-15 | Laminated | B Plate | 1-5/8 | #3 | Yes | $222.97 | ||
| 3BL-0809-15X | Laminated Plus | B Plate | 1-5/8 | #3 | Yes | $285.77 | ||
| 3BL-0809-21 | Laminated | B Plate | 2-1/8 | #3 | Yes | $261.29 | ||
| 3BL-0809-21X | Laminated Plus | B Plate | 2-1/8 | #3 | Yes | $324.69 | ||
| 3BS-0809-13 | Solid | B Plate | 1-3/8 | #3 | Yes | $243.87 | ||
| 3BS-0809-13G | Solid | B Plate | 1-3/8 | #3 | No | $235.74 | ||
| 3BS-0809-13X | Solid Plus | B Plate | 1-3/8 | #3 | Yes | $303.10 | ||
| 3BS-0809-17 | Solid | B Plate | 1-7/8 | #3 | Yes | $282.19 | ||
| 3BS-0809-17G | Solid | B Plate | 1-7/8 | #3 | No | $280.44 | ||
| 3BS-0809-17X | Solid Plus | B Plate | 1-7/8 | #3 | Yes | $344.26 | ||
| 3BS-0809-23 | Solid | B Plate | 2-3/8 | #3 | Yes | $320.51 | ||
| 3BS-0809-23G | Universal | B Plate | 2-3/8 | #3 | No | $325.15 | ||
| 3BS-0809-23X | Solid Plus | B Plate | 2-3/8 | #3 | Yes | $438.97 | ||
| 3BS-0809-27 | Solid | B Plate | 2-7/8 | #3 | Yes | $336.71 | ||
| 3BS-0809-27G | Solid | B Plate | 2-7/8 | #3 | No | $342.45 | ||
| 3BS-0809-27X | Solid Plus | B Plate | 2-7/8 | #3 | Yes | $451.88 | ||
| 3BT-0809-10 | T-Style | B Plate | 1 | #3 | Yes | $212.53 | ||
| 3BT-0809-10X | T-Style Plus | B Plate | 1 | #3 | Yes | $277.01 | ||
| 3BT-0809-12 | T-Style | B Plate | 1-1/4 | #3 | Yes | $236.93 | ||
| 3BT-0809-12X | T-Style Plus | B Plate | 1-1/4 | #3 | Yes | $297.45 | ||
| 3BT-0809-14 | T-Style | B Plate | 1-1/2 | #3 | Yes | $264.78 | ||
| 3BT-0809-14X | T-Style Plus | B Plate | 1-1/2 | #3 | Yes | $327.64 | ||
| 3BT-0809-17 | T-Style | B Plate | 1-7/8 | #3 | Yes | $310.05 | ||
| 3BT-0809-17X | T-Style Plus | B Plate | 1-7/8 | #3 | Yes | $366.38 |
