- Unit of Measure - Inch
- Material: AISI 4104 Pre-hard
- Hardness: 28-32 HRC
- Increases ejection stroke for knockout rod
- Black oxide coating helps to inhibit corrosion.
- Two options for no internal thread
- Etched for easy identification
- 1/4 -20 SCHS included

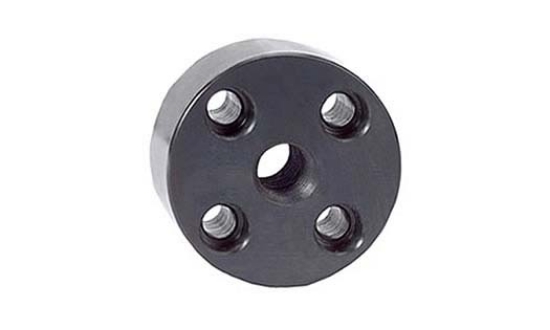

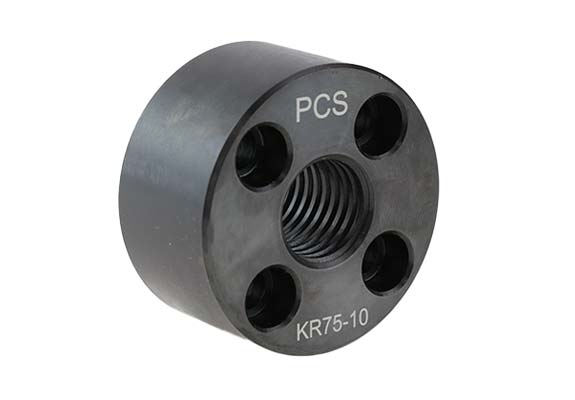

Round Series Knockout Rod Extensions
PCS Company's Round Series Knock Out Rod Extensions increase the ejection stroke for knockout rods. The Round or Puck series are available in 4 popular threads sizes to work with multiple press manufactures plus no internal thread options. Also available in Hex-Series.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | Thread Size | D Overall Height | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|
| KR37-10 | 3/8-16 | 1.052 | $31.50 | ||
| KR37-15 | 3/8-16 | 1.552 | $33.32 | ||
| KR50-10 | 1/2-13 | 1.052 | $31.50 | ||
| KR50-15 | 1/2-13 | 1.552 | $33.25 | ||
| KR62-10 | 5/8-11 | 1.052 | $31.50 | ||
| KR62-15 | 5/8-11 | 1.552 | $33.25 | ||
| KR75-10 | 3/4-10 | 1.052 | $32.65 | ||
| KR75-10NT | No Internal Thread | 1.052 | $30.09 | ||
| KR75-15 | 3/4-10 | 1.552 | $33.25 | ||
| KR75-15NT | No Internal Thread | 1.552 | $29.50 |
