- Unit of Measure - Inch
- A & B Plates #3 Steel / All others #2 Steel
- Guided Ejection included at no extra charge
- Item Number ending with "G" - No Guided Ejection
- Clamp Slots used in solid units for greater clamping stability and larger cavities and cores
- Compatible with M.U.D.® style units
- Pry slots added to parting line
- Compatible with U Frames
- Compatible with F.I.T.S.® and MUD® U-Frames

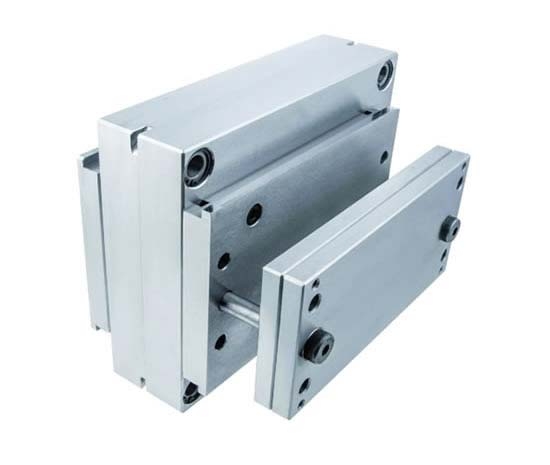

T-Style Plus F.I.T.S. Insert
T-Style inserts offer the maximum projected mold area using the frame width for "A" & "B" plates. These inserts are called "T-Style" because the "A" and "B" plates are wider than the attached clamping plate; and from a side view the insert looks like the letter "t". Can be ordered with (standard) or without guided ejection. A & B Plates are made with #3 Steel, all other plates are #2 Steel.
CAD Files for F.I.T.S. inserts can be found through our CAD Library.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | A Plate Thickness | B Plate Thickness | Guided Ejection | Series | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|
| FTT-0809-201-X | 1.001 | 1.001 | Yes | 08/09 | $1,020.70 | ||
| FTT-0809-202-X | 1.001 | 1.501 | Yes | 08/09 | $1,070.78 | ||
| FTT-0809-203-X | 1.251 | 1.251 | Yes | 08/09 | $1,064.46 | ||
| FTT-0809-204-X | 1.501 | 1.001 | Yes | 08/09 | $1,064.90 | ||
| FTT-0809-205-X | 1.501 | 1.501 | Yes | 08/09 | $1,114.98 | ||
| FTT-0809-206-X | 1.876 | 1.876 | Yes | 08/09 | $1,185.69 |
