- Unit of Measure - Inch
- Made from solid brass
- Must be used with High Flow tubes
- Perpendicular inlet/outlet connections
- Pipe plugs not required
- Made in the U.S.A.

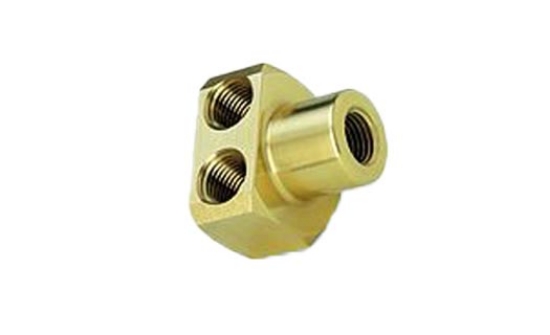

Compact Cascade Replacement Heads
Compact Cascade Replacement Heads come standard in solid brass. In/Out connections are positioned sideways for mounting in tight spaces or thin mold plates. These heads require no pipe plugs and must be used with high flow stainless tubes.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | Head Thickness | Hex Size | Inlet - Outlet Hole Locations | Mold Nipple | Outlet Hole Spread | Overall Length | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|
| ET1214H | 3/4 | 1-3/4 | 3/8 | 1/2 | 1 | 1-3/4 | $21.99 | ||
| ET1414H | 3/4 | 1-1/2 | 3/8 | 1/4 | 3/4 | 1-1/2 | $20.32 | ||
| ET1418H | 5/8 | 1-1/4 | 5/16 | 1/4 | 11/16 | 1-1/4 | $18.65 | ||
| ET1816H | 7/16 | 15/16 | 7/32 | 1/8 | 1/2 | 1 | $18.65 | ||
| ET3814H | 3/4 | 1-1/2 | 3/8 | 3/8 | 3/4 | 1-1/2 | $22.11 |
