- Unit of Measure - Inch
- Black oxide coating to avoid rust
- Made of hardened tool steel
- Made in USA

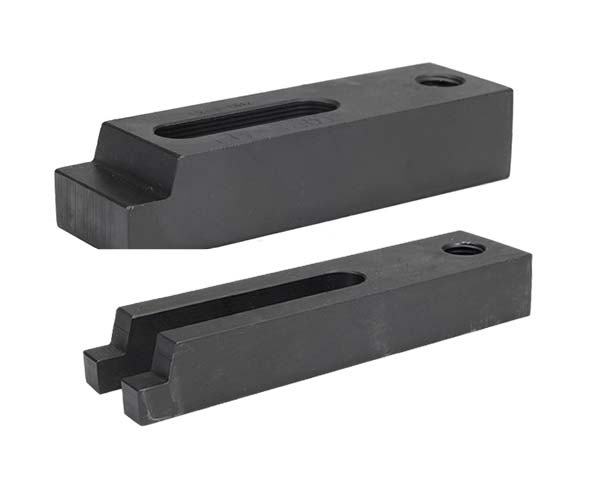

Individual Mold Clamp Bodies
Individual mold clamp bodies available for all open and closed toe mold clamp assemblies.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | Weight | Toe | For Clamping Screw Diameter | Mold Clamp Body Thickness | Mold Clamp Body Width | Mold Clamp Body Slot Length | Mold Clamp Body Overall Length | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|
| HD110 | 1 | Open | 1 | 1-1/2 | 2-1/2 | 6 | 10 | $98.59 | ||
| HD584 | 1.322 | Open | 5/8 | 1 | 1-3/4 | 2-3/4 | 4 | $24.10 | ||
| HD585 | 2 | Open | 5/8 | 1 | 1-3/4 | 3-1/4 | 5 | $26.98 | ||
| HD586 | 1 | Open | 5/8 | 1 | 1-3/4 | 3-3/4 | 6 | $29.85 | ||
| HD587 | 2 | Open | 5/8 | 1 | 1-3/4 | 4-1/4 | 7 | $33.48 | ||
| HD755 | 1 | Open | 3/4 | 1-1/8 | 2 | 3-3/8 | 5 | $40.46 | ||
| HD756 | 2 | Open | 3/4 | 1-1/8 | 2 | 3-7/8 | 6 | $46.72 | ||
| HD757 | 2 | Open | 3/4 | 1-1/8 | 2 | 4-3/8 | 7 | $55.55 | ||
| HD758 | 2 | Open | 3/4 | 1-1/8 | 2 | 5-3/8 | 8 | $62.17 | ||
| XHD1008 | 2 | Open | 1 | 1-3/4 | 2-1/2 | 4-3/8 | 8 | $89.76 | ||
| XHD1009 | 2 | Closed | 1 | 1-3/4 | 2-1/2 | 3 | 8 | $86.08 | ||
| XHD1011 | 2 | Open | 1 | 1-3/4 | 2-1/2 | 6-3/8 | 11 | $123.60 | ||
| XHD1012 | 1 | Closed | 1 | 1-3/4 | 2-1/2 | 5 | 11 | $119.92 | ||
| XHD1250 | 14.3 | Closed | 1-1/4 | 1-3/4 | 3 | 5-1/2 | 13 | $174.00 | ||
| XHD1500 | 12 | Closed | 1-1/2 | 1-3/4 | 3-1/2 | 5-3/4 | 13-1/2 | $209.31 | ||
| XHD5860 | 2 | Open | 5/8 | 1-1/4 | 1-3/4 | 3-5/8 | 6 | $37.15 | ||
| XHD5861 | 2.876 | Closed | 5/8 | 1-1/4 | 1-3/4 | 2-5/8 | 6 | $36.96 | ||
| XHD5875 | 1 | Open | 5/8 | 1-1/4 | 1-3/4 | 4-5/8 | 7-1/2 | $49.29 | ||
| XHD5876 | 1 | Closed | 5/8 | 1-1/4 | 1-3/4 | 3-5/8 | 7-1/2 | $46.35 | ||
| XHD7565 | 2 | Open | 3/4 | 1-1/2 | 2 | 4 | 6-1/2 | $54.44 | ||
| XHD7566 | 2 | Closed | 3/4 | 1-1/2 | 2 | 2-3/4 | 6-1/2 | $53.58 | ||
| XHD7580 | 2 | Open | 3/4 | 1-1/2 | 2 | 5 | 8 | $66.21 | ||
| XHD7581 | 5.074 | Closed | 3/4 | 1-1/2 | 2 | 3-3/4 | 8 | $64.01 | ||
| XHD7595 | 2 | Open | 3/4 | 1-1/2 | 2 | 6 | 9-1/2 | $77.62 | ||
| XHD7596 | 2 | Closed | 3/4 | 1-1/2 | 2 | 4-3/4 | 9-1/2 | $73.20 |
