- Metric threads: M5 → M42
- Two possibilities of tightening and protection of bolt head
- Usable for any kind of lifting operation (straight lifts, with angle, turning, rotating)
- Individual traceability number
- Operating temperature: -20°C to 200°C / -4°F to 392°F
- Clear markings (CE, WLL, tightening torque)
- Anti-corrosion coating (zinc coating) on bolt and base
- Built in anti-tribocorrosion grease, easy rotation under load
- Automatic orientation in the direction of pulling
- 7 year warranty when registered thru Codipro

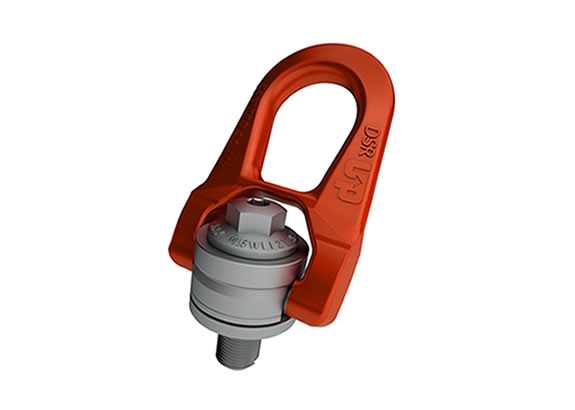

Codipro DSR Double Swivel Lifting Ring - Metric
PCS Company offers Codipro's DSR, Metric Double Swivel Lifting Ring. The DSR is specially designed for simultaneously lifting and rotating loads. Its double swivel action ensures perfect alignment with the sling. Swiveling under load, the ring swivels 180°, but has a rotating range of 360°. See instructions under Resources for further info. Register your Codipro Eyebolt at Coditracer.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | SF 5:1 WLL (t) | Thread Size | Thread Length L1 (mm) | Torque (Nm) | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|
| DSRM10UP | 0.7 | M10x1.5 | 18 | 10 | $108.55 | ||
| DSRM12UP | 1.05 | M12x1.75 | 21 | 15 | $112.56 | ||
| DSRM14UP | 1.4 | M14x2 | 23 | 30 | $153.58 | ||
| DSRM16UP | 2 | M16x2 | 27 | 50 | $153.58 | ||
| DSRM18UP | 2.3 | M18x2.5 | 27 | 70 | $159.82 | ||
| DSRM202t5UP | 2.5 | M20x2.5 | 30 | 100 | $159.82 | ||
| DSRM203t2UP | 2.9 | M20x2.5 | 25 | 100 | $247.78 | ||
| DSRM22UP | 3.5 | M22x2.5 | 33 | 120 | $260.82 | ||
| DSRM24UP | 4.4 | M24x3 | 36 | 160 | $254.30 | ||
| DSRM27UP | 5.7 | M27x3 | 40 | 200 | $291.15 | ||
| DSRM306t3UP | 6 | M30x3.5 | 45 | 250 | $271.80 | ||
| DSRM308tUP | 6.7 | M30x3.5 | 45 | 250 | $543.61 | ||
| DSRM36UP | 8 | M36x4 | 54 | 320 | $552.23 | ||
| DSRM42UP | 8.5 | M42x4.5 | 63 | 400 | $593.23 | ||
| DSRM5UP | 0.07 | M5x0.8 | 15 | 3 | $106.54 | ||
| DSRM6UP | 0.15 | M6x1 | 15 | 4 | $104.53 | ||
| DSRM8UP | 0.4 | M8x1.25 | 15 | 6 | $106.54 |
