- Unit of Measure - Inch
- Machined from premium quality steel
- Hardened with a black oxide finish
- Supplied with swivel base adjusting screw
- Easy to install
- Purchased as complete assemblies or individual parts
- Made in USA

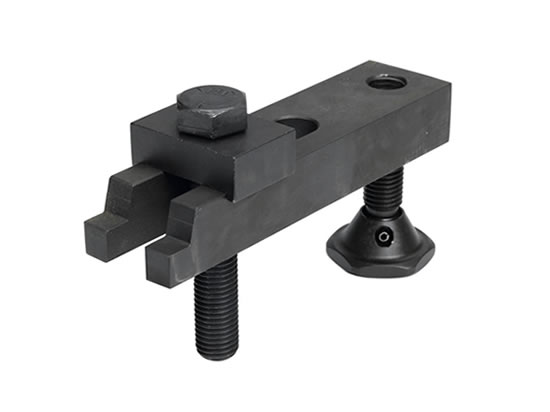

Extra Heavy Duty Open Toe Mold Clamp Assemblies - Swivel Base
PCS Machined Mold Clamps are easy to install and reduce set up time. Each Clamp is machined from premium quality steel which is hardened for long life. This extra heavy duty open toe mold clamp assembly is supplied with mold clamp body, clamp adjusting screw, mold washer and clamping screw.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | Weight | Individual Body Clamp Part No. | For Clamping Screw Diameter | Clamping Screw Size | Mold Clamp Body Thickness | Mold Clamp Body Width | Mold Clamp Body Slot Length | Mold Clamp Body Overall Length | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TAC1008A | 2 | XHD1008 | 1 | 1-8 x 5-1/2 | 1-3/4 | 1-3/4 | 4-3/8 | 8 | $141.00 | ||
| TAC1011A | 13.54 | XHD1011 | 1 | 1-8 x 5-1/2 | 1-3/4 | 1-3/4 | 6-3/8 | 11 | $174.00 | ||
| TAC5860A | 1 | XHD5860 | 5/8 | 5/8-11 x 3-3/4 | 1-1/4 | 1-3/4 | 3-5/8 | 6 | $62.54 | ||
| TAC5875A | 4.686 | XHD5875 | 5/8 | 5/8-11 x 3-3/4 | 1-1/4 | 1-3/4 | 4-5/8 | 7-1/2 | $74.68 | ||
| TAC7565A | 1 | XHD7565 | 3/4 | 3/4-10 x 4-1/2 | 1-1/2 | 1-1/2 | 4 | 6-1/2 | $86.00 | ||
| TAC7580A | 2 | XHD7580 | 3/4 | 3/4-10 x 4-1/2 | 1-1/2 | 1-1/2 | 5 | 8 | $96.75 | ||
| TAC7595A | 2 | XHD7595 | 3/4 | 3/4-10 x 4-1/2 | 1-1/2 | 1-1/2 | 6 | 9-1/2 | $108.15 |
