- Unit of Measure - Metric
- Hardness 62-64 HRC
- Material: 5732 Stainless Steel

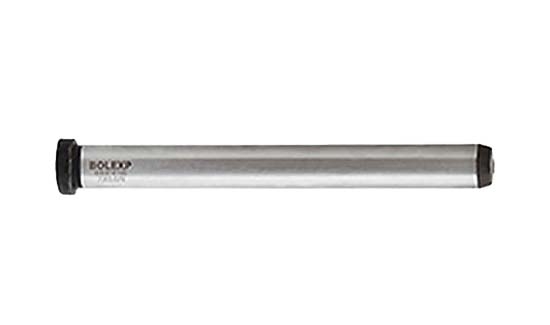

Metric Leader Pin - Column - B808
The Bolexp metric leader pins are made of surface hardened steel that leaves the core soft to absorb any bending that my occur.
| Item Number | d1 Pin Diameter | L Overall Length | d2 Head Diameter | a Head Thickness | b Lead Length | c Press Fit Length | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|
| B80808060 | 8 | 60 | 12 | 3 | 4 | 10 | $9.86 | ||
| B80808080 | 8 | 80 | 12 | 3 | 4 | 10 | $11.74 | ||
| B80808100 | 8 | 100 | 12 | 3 | 4 | 10 | $13.63 | ||
| B80810060 | 10 | 60 | 14 | 4 | 4 | 12 | $10.27 | ||
| B80810080 | 10 | 80 | 14 | 4 | 4 | 12 | $12.36 | ||
| B80810100 | 10 | 100 | 14 | 4 | 4 | 12 | $14.24 | ||
| B80812080 | 12 | 80 | 16 | 4 | 4 | 16 | $13.43 | ||
| B80812100 | 12 | 100 | 16 | 4 | 4 | 16 | $15.52 | ||
| B80812125 | 12 | 125 | 16 | 4 | 4 | 16 | $17.60 | ||
| B80816080 | 16 | 80 | 20 | 6 | 6 | 20 | $16.38 | ||
| B80816100 | 16 | 100 | 20 | 6 | 6 | 20 | $16.77 | ||
| B80816125 | 16 | 125 | 20 | 6 | 6 | 20 | $18.68 | ||
| B80816160 | 16 | 160 | 20 | 6 | 6 | 20 | $22.85 | ||
| B80816200 | 16 | 200 | 20 | 6 | 6 | 20 | $28.09 | ||
| B80820100 | 20 | 100 | 24 | 6 | 6 | 22 | $20.54 | ||
| B80820125 | 20 | 125 | 24 | 6 | 6 | 22 | $23.70 | ||
| B80820160 | 20 | 160 | 24 | 6 | 6 | 22 | $26.82 | ||
| B80820200 | 20 | 200 | 24 | 6 | 6 | 22 | $29.76 | ||
| B80820250 | 20 | 250 | 24 | 6 | 6 | 22 | $34.59 | ||
| B80825125 | 25 | 125 | 30 | 6 | 6 | 25 | $24.96 | ||
| B80825160 | 25 | 160 | 30 | 6 | 6 | 25 | $29.56 | ||
| B80825200 | 25 | 200 | 30 | 6 | 6 | 25 | $36.06 | ||
| B80825250 | 25 | 250 | 30 | 6 | 6 | 25 | $53.05 | ||
| B80825315 | 25 | 315 | 30 | 6 | 6 | 25 | $67.29 | ||
| B80832125 | 32 | 125 | 37 | 8 | 8 | 35 | $36.28 | ||
| B80832160 | 32 | 160 | 37 | 8 | 8 | 35 | $43.83 | ||
| B80832200 | 32 | 200 | 37 | 8 | 8 | 35 | $52.83 | ||
| B80832250 | 32 | 250 | 37 | 8 | 8 | 35 | $67.49 | ||
| B80832315 | 32 | 315 | 37 | 8 | 8 | 35 | $90.36 | ||
| B80840125 | 40 | 125 | 45 | 8 | 8 | 35 | $55.14 | ||
| B80840200 | 40 | 200 | 45 | 8 | 8 | 35 | $68.96 | ||
| B80840250 | 40 | 250 | 45 | 8 | 8 | 35 | $88.05 | ||
| B80840315 | 40 | 315 | 45 | 8 | 8 | 35 | $111.52 | ||
| B80840400 | 40 | 400 | 45 | 8 | 8 | 35 | $143.60 | ||
| B80850315 | 50 | 315 | 55 | 10 | 10 | 45 | $178.19 | ||
| B80850400 | 50 | 400 | 55 | 10 | 10 | 45 | $215.92 | ||
| B80860315 | 60 | 315 | 65 | 10 | 10 | 55 | $223.25 | ||
| B80860400 | 60 | 400 | 65 | 10 | 10 | 55 | $282.99 |
