- Multiple zone control - using several regulatorsor an optional inlet manifold facilitates effective zone control
- Unaffected by pressure changes - the Mold Temperature Regulator uses the thermal expansion principle for operation
- Handles tower water temperature changes - modulates flow to control cooling water temperature
- In-Line mounting - installs easily without additional hardware
- Cost of ownership - typically 1/6 the cost of a conventional electric mold heater
- Maintenance free - few internal parts for trouble-free operation
- Energy saving - it uses no electricity, conserving precious energy dollars
- Small size - cleans up shop floor clutter: no hoses or power cords to trip over
- Integral dial thermometer - verifies Set Point temperature
- Optional inlet manifold - provides temperature control for multiple zones with one regulator
- Made in the U.S.A.

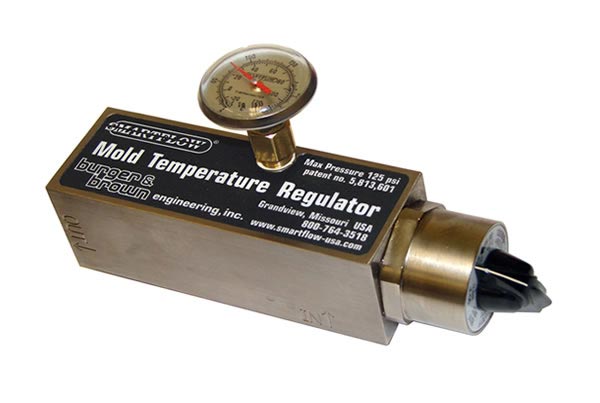

Smartflow® Mold Temperature Regulator
PCS Company offers the Smartflow® Mold Temperature Regulator which effectively controls mold cooling water temperature between 80°F and 120°F (27° and 49°C) to maintain a steady mold temperature. Installed to control water flow exiting an injection mold, the Mold Temperature Regulator quietly recovers waste heat from the resin shot, working without electricity to reduce shop floor clutter, and cut production costs.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | Inlet | Outlet | Material | O-Rings | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|
| WDMF-100-A | 1/4"NPT(F) 7 port | n/a | Electroless Nickel-Plated Brass & Stainless Steel | Buna-N | $118.00 | ||
| WDT2-N2-N4 | 1/4"NPT(F) | 1/2"NPT(F) | Electroless Nickel-Plated Brass & Stainless Steel | Buna-N | $509.00 | ||
| WDT2-N2-N4-M | 1/4"NPT(F) 7 port Manifold | 1/2"NPT(F) | Electroless Nickel-Plated Brass & Stainless Steel | Buna-N | $531.00 | ||
| WDT2-S2-P2 | 1/4" Quick Connect Socket | 1/4" Quick Connect Plug | Electroless Nickel-Plated Brass & Stainless Steel | Buna-N | $509.00 | ||
| WDT2-S3-P3 | 3/8" Quick Connect Socket | 3/8" Quick Connect Plug | Electroless Nickel-Plated Brass & Stainless Steel | Buna-N | $531.00 |
