- Unit of Measure - Inch
- Brass construction
- Requires minimum clearance to install
- For use with High Flow Tubes only
- Stainless Steel Heads available upon request
- Made in the U.S.A.

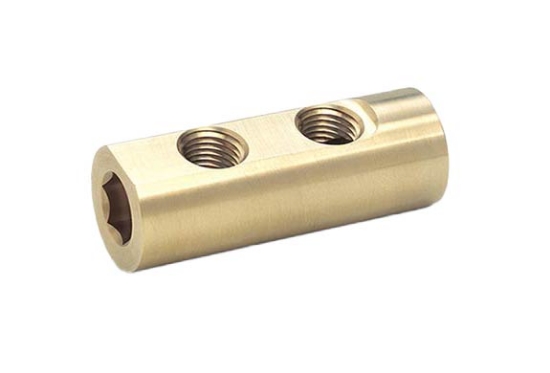

Hex Key Cascade Water Junction Replacement Heads
PCS Company's Hex Key Cascade Water Junction Replacement Heads come standard with a solid brass construction. These replacement heads require minimum clearance to install. Select from High-Flow Stainless Steel Cascade Tubes and Stainless Steel Cascade Pipe Nipples to build your Hex Key Cascade assembly.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | Tube Thread Size | Outlet Hole Location | Hex Size | Nominal Clearance Drill | O.D. | Pipe Tap Size (NPT) | Mold Nipple (NPT) M | Use with High Flow Tube | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|
| E121H-4 | 7/16-20 | 1 | 1/2 | 1.25 | 1.235 | 1/4 | 1/2 | HF375T-12 | $25.21 | ||
| E141H | 5/16-24 | 13/16 | 1/2 | 1 | 0.985 | 1/8 | 1/4 | HF250T-12 | $16.22 | ||
| E141H-4 | 5/16-24 | 7/8 | 1/2 | 1 | 0.985 | 1/4 | 1/4 | HF250T-12 | $16.60 | ||
| E146H | 5/16-24 | 13/16 | 1/2 | 1 | 0.985 | 1/8 | 1/4 | HF250T-12 | $16.20 | ||
| E146H-4 | 5/16-24 | 7/8 | 1/2 | 1 | 0.985 | 1/4 | 1/4 | HF250T-12 | $16.58 | ||
| E16H | 10-32 | 1/2 | 5/16 | 0.625 | 0.61 | 1/16 | 1/16 | HF125T-12 | $16.20 | ||
| E16H-2 | 1/4-28 | 9/16 | 3/8 | 0.75 | 0.735 | 1/16 | 1/16 | HF187T-12 | $14.74 | ||
| E181H | 1/4-28 | 9/16 | 3/8 | 0.875 | 0.86 | 1/8 | 1/8 | HF187T-12 | $15.05 | ||
| E186H | 1/4-28 | 9/16 | 3/8 | 0.875 | 0.86 | 1/8 | 1/8 | HF187T-12 | $14.67 | ||
| E381H-4 | 3/8-24 | 7/8 | 1/2 | 1 | 0.985 | 1/4 | 3/8 | HF312T-12 | $17.62 |
