- Unit of Measure - Inch
- NPT Threads
- Divert the flow of water or coolant
- Separates machined waterlines into multiple channels
- Flush-seal type (7/8 taper) brass pipe plug standard
- Patented XT Technology with extra deep socket will not strip out
- 300% more wrenching power from solid brass solderless joint
- Spiral design creates turbulent water flow for more efficient cooling
- Made in the U.S.A.

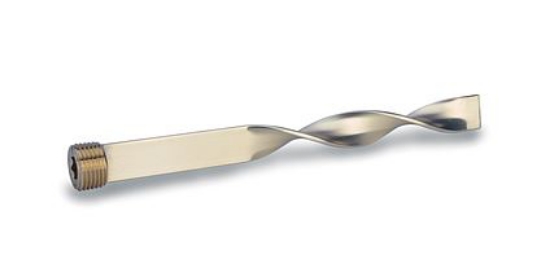

Spiral Brass Baffles
PCS Company's Spiral Brass Baffles are designed to divert the flow of water or coolant in the mold. The spiral design lengthens the cooling path which keeps the baffle centered, creates turbulent flow and provides an 11% greater flow rate. Constructed with a solid brass solderless joint allows for more wrenching power. Select from standard lengths ranging from 4" to 24". Threads are NPT.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | Overall Length | Drill Size | S Shoulder Length | Blade Thickness | Blade Width | Plug Size | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|
| SB-062-12 | 12 | 1/4 | 6 | 0.057 | 1/4 | 1/16-27 | $6.64 | ||
| SB-062-4 | 4 | 1/4 | 2 | 0.057 | 1/4 | 1/16-27 | $5.97 | ||
| SB-062-8 | 8 | 1/4 | 4 | 0.057 | 1/4 | 1/16-27 | $8.18 | ||
| SB-1000-16 | 16 | 1-1/8 | 5 | 0.093 | 1-1/8 | 1-11 1/2 | $36.16 | ||
| SB-1000-24 | 24 | 1-1/8 | 8 | 0.093 | 1-1/8 | 1-11 1/2 | $42.31 | ||
| SB-125-12 | 12 | 5/16 | 6 | 0.057 | 5/16 | 1/8-27 | $7.17 | ||
| SB-125-4 | 4 | 5/16 | 2 | 0.057 | 5/16 | 1/8-27 | $6.18 | ||
| SB-125-8 | 8 | 5/16 | 4 | 0.057 | 5/16 | 1/8-27 | $7.14 | ||
| SB-250-10 | 10 | 7/16 | 4 | 0.085 | 7/16 | 1/4-18 | $7.75 | ||
| SB-250-15 | 15 | 7/16 | 6 | 0.085 | 7/16 | 1/4-18 | $9.70 | ||
| SB-250-5 | 5 | 7/16 | 2 | 0.085 | 7/16 | 1/4-18 | $6.89 | ||
| SB-375-12 | 12 | 9/16 | 4 | 0.093 | 9/16 | 3/8-18 | $10.73 | ||
| SB-375-12S | 12 | 9/16 | 4 | 0.093 | 9/16 | 3/8-18 | $14.00 | ||
| SB-375-18 | 18 | 9/16 | 6 | 0.093 | 9/16 | 3/8-18 | $11.94 | ||
| SB-375-6 | 6 | 9/16 | 2 | 0.093 | 9/16 | 3/8-18 | $8.33 | ||
| SB-500-16 | 16 | 11/16 | 5 | 0.093 | 11/16 | 1/2-14 | $11.95 | ||
| SB-500-8 | 8 | 11/16 | 3 | 0.093 | 11/16 | 1/2-14 | $10.54 | ||
| SB-750-12 | 12 | 15/16 | 4 | 0.093 | 15/16 | 3/4-14 | $18.54 | ||
| SB-750-12S | 12 | 15/16 | 4 | 0.093 | 15/16 | 3/4-14 | $14.06 | ||
| SB-750-20 | 20 | 15/16 | 6 | 0.093 | 15/16 | 3/4-14 | $19.65 |
