- Unit of Measure: Millimeters
- Material: SUS420 Stainless Steel
- Hardness: 50-53 HRC
- Max mold temperature: 150°C (300°F)
- Body diameter has a m6 tolerance to ensure transition fit
- Compatible with DME Indexable Inserts

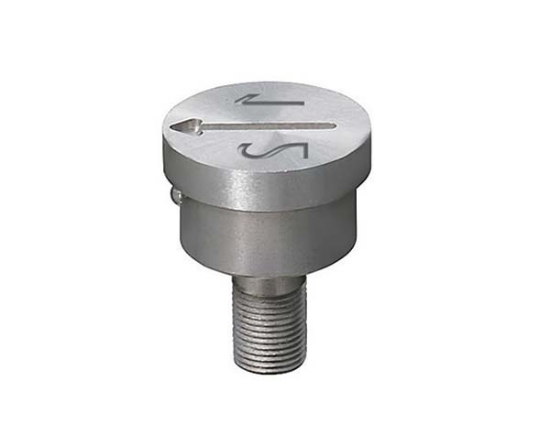

Indexable Center Inserts
PCS Company offers Indexable Inserts - Center Inserts in both Arrow & Year and Arrow Only options. Center Insert is installed and removed from parting line side of the mold. Diameters from 2.4mm to 13.2 are available.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | D Body Diameter | Year | Configuration | B Center Insert Dia | MxP | Arrow Depth | F Cen. Ins. Len. | TL - Thread Length | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DNX10 | 10 | N/A | Arrow Only | 6.3 | M2.5x0.35 | 0.5 | 11.4 | 4 | $45.15 $33.86 | ||
| DNX12 | 12 | N/A | Arrow Only | 7.5 | M3.0x0.35 | 0.5 | 13.7 | 4.2 | $45.15 $33.86 | ||
| DNX16 | 16 | N/A | Arrow Only | 11 | M4x0.35 | 0.5 | 13.7 | 4.8 | $52.01 $39.01 | ||
| DNX20 | 20 | N/A | Arrow Only | 13.2 | M4x0.35 | 0.5 | 15.7 | 5.3 | $52.01 $39.01 | ||
| DNX4 | 4 | N/A | Arrow Only | 2.4 | M1.6x0.2 | 0.22 | 7.7 | 2.7 | $39.95 $29.96 | ||
| DNX5 | 5 | N/A | Arrow Only | 2.9 | M1.6x0.2 | 0.25 | 7.7 | 2.7 | $42.98 $32.24 | ||
| DNX6 | 6 | N/A | Arrow Only | 3.7 | M1.6x0.2 | 0.4 | 7.7 | 2.7 | $45.15 $33.86 | ||
| DNX8 | 8 | N/A | Arrow Only | 5 | M2.3x0.25 | 0.4 | 9.7 | 3.2 | $45.15 $33.86 | ||
| DYYX10-26 | 10 | 26 | Arrow & Year | 6.3 | M2.5x0.35 | 0.5 | 11.7 | 4 | $48.18 $36.14 | ||
| DYYX10-27 | 10 | 27 | Arrow & Year | 6.3 | M2.5x0.35 | 0.5 | 11.7 | 4 | $56.44 $42.33 | ||
| DYYX12-26 | 12 | 26 | Arrow & Year | 7.5 | M3.0x0.35 | 0.5 | 13.7 | 4.2 | $48.18 $36.14 | ||
| DYYX12-27 | 12 | 27 | Arrow & Year | 7.5 | M3.0x0.35 | 0.5 | 13.7 | 4.2 | $56.86 $42.64 | ||
| DYYX16-26 | 16 | 26 | Arrow & Year | 11 | M4x0.35 | 0.5 | 13.7 | 4.8 | $54.70 $41.02 | ||
| DYYX16-27 | 16 | 27 | Arrow & Year | 11 | M4x0.35 | 0.5 | 13.7 | 4.8 | $64.08 $48.06 | ||
| DYYX20-26 | 20 | 26 | Arrow & Year | 13.2 | M4x0.35 | 0.5 | 15.7 | 5.3 | $71.37 $53.53 | ||
| DYYX20-27 | 20 | 27 | Arrow & Year | 13.2 | M4x0.35 | 0.5 | 15.7 | 5.3 | $83.63 $62.72 | ||
| DYYX4-26 | 4 | 26 | Arrow & Year | 2.4 | M1.6x0.2 | 0.22 | 7.7 | 2.7 | $48.18 $36.14 | ||
| DYYX4-27 | 4 | 27 | Arrow & Year | 2.4 | M1.6x0.2 | 0.22 | 7.7 | 2.7 | $56.44 $42.33 | ||
| DYYX5-26 | 5 | 26 | Arrow & Year | 2.9 | M1.6x0.2 | 0.25 | 7.7 | 2.7 | $48.18 $36.14 | ||
| DYYX5-27 | 5 | 27 | Arrow & Year | 2.9 | M1.6x0.2 | 0.25 | 7.7 | 2.7 | $56.44 $42.33 | ||
| DYYX6-26 | 6 | 26 | Arrow & Year | 3.7 | M1.6x0.2 | 0.4 | 7.7 | 2.7 | $48.18 $36.14 | ||
| DYYX6-27 | 6 | 27 | Arrow & Year | 3.7 | M1.6x0.2 | 0.4 | 7.7 | 2.7 | $56.44 $42.33 | ||
| DYYX8-26 | 8 | 26 | Arrow & Year | 5 | M2.3x0.25 | 0.4 | 9.7 | 3.2 | $48.18 $36.14 | ||
| DYYX8-27 | 8 | 27 | Arrow & Year | 5 | M2.3x0.25 | 0.4 | 9.7 | 3.2 | $56.44 $42.33 |
